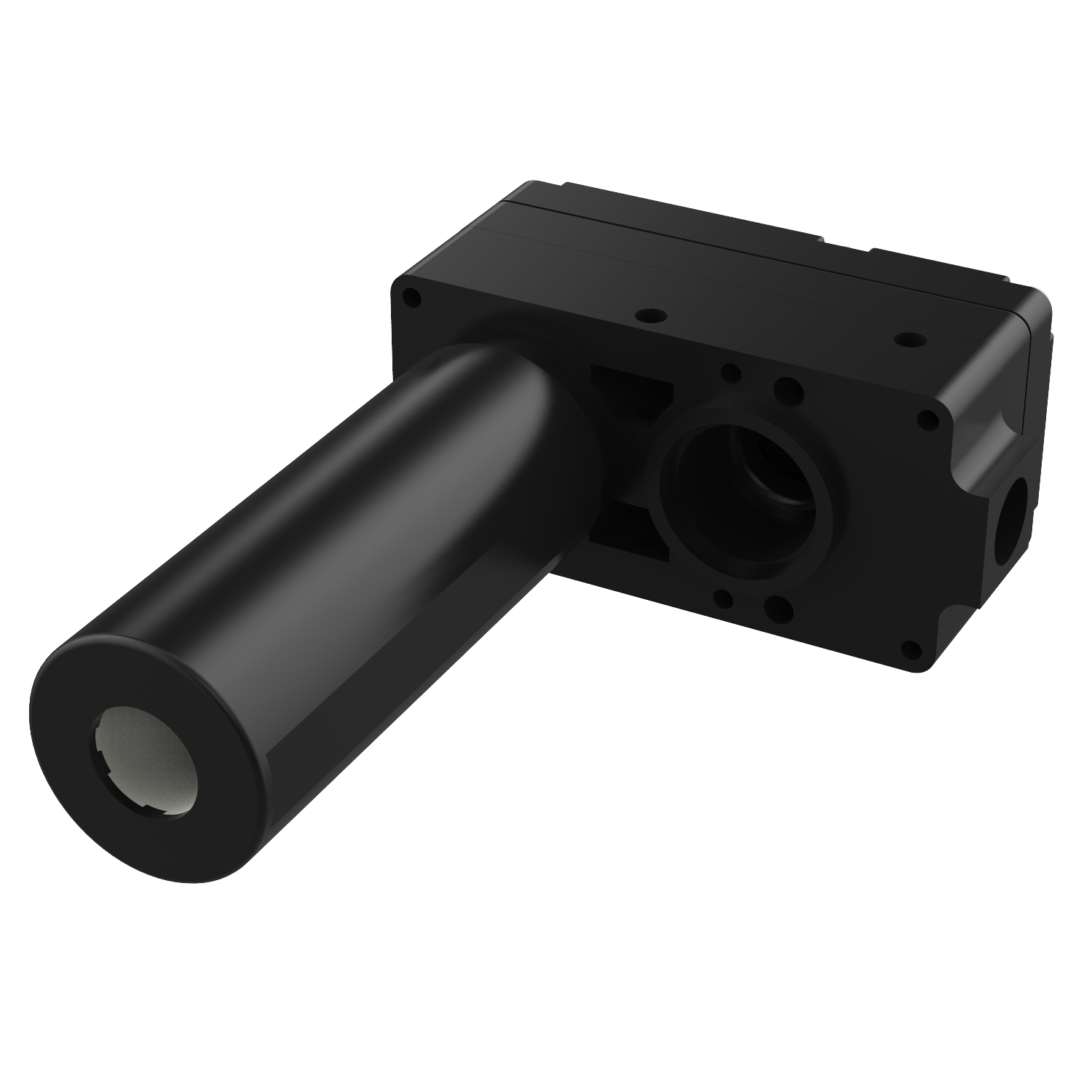

Piab Vacuum pump MINI X20L, conn. C, NBR seals, non-return valve

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$200.99
Part Number
  • X20A5-CNA
Highlights...

Features

  • Extra vacuum level to 27.9 -inHg
  • Small size and low weight
  • Use in tightly sealed or non-porous applications
  • Material: Nitrile (NBR);ABS;Al;PA;POM;SS
  • Temperature: -4 °F
  • Dimensions: 0.13 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
