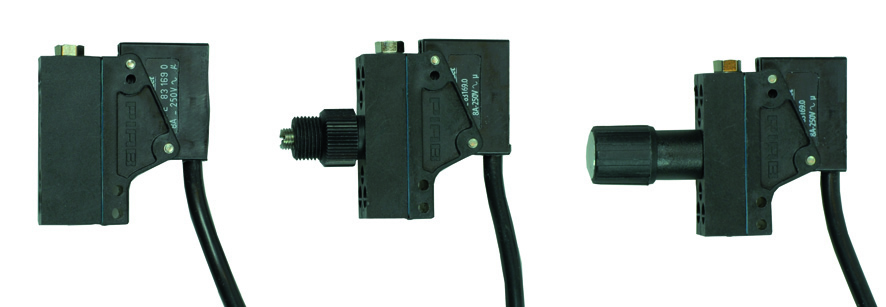

Piab Vacuum switch, electro-mechanical, adjustable with screw and knob

Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.

$126.96
Part Number
  • 31.16.061
Highlights...

Features

  • Converts a vacuum level to an electric signal, VAC or VDC.
  • Vacuum-actuated membrane linked to an electro-mechanical switch.
  • Integrated cable with open ends included.
  • Available preset or with adjustable vacuum level.
  • Material: Nitrile (NBR);Al;CuZn;PA;PBTP;POM;PVC;SS
  • Temperature: -4 °F

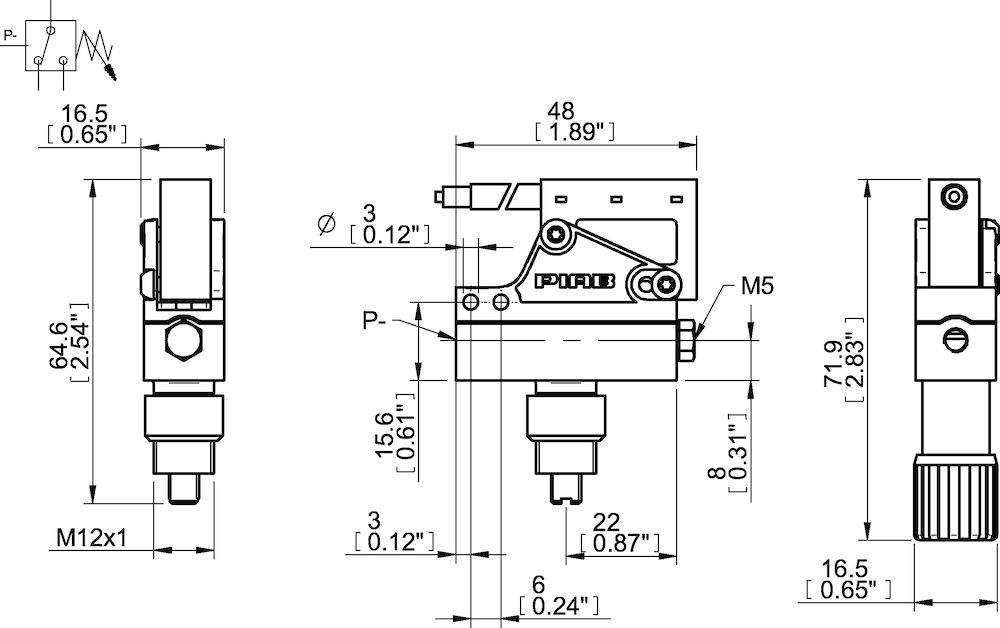

  • Dimensions: 0.65 in. (depth) x 1.89 in. (width) x 2.54 in. (length), 0.14 lb. (weight)
  • Feed Pressure (Max): 0.6 MPa
