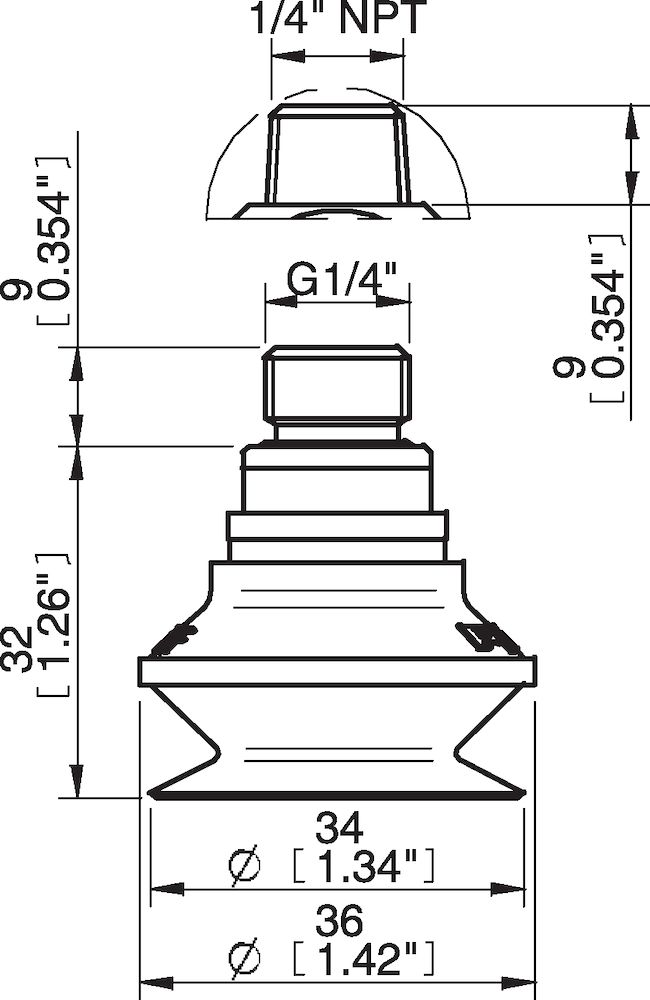

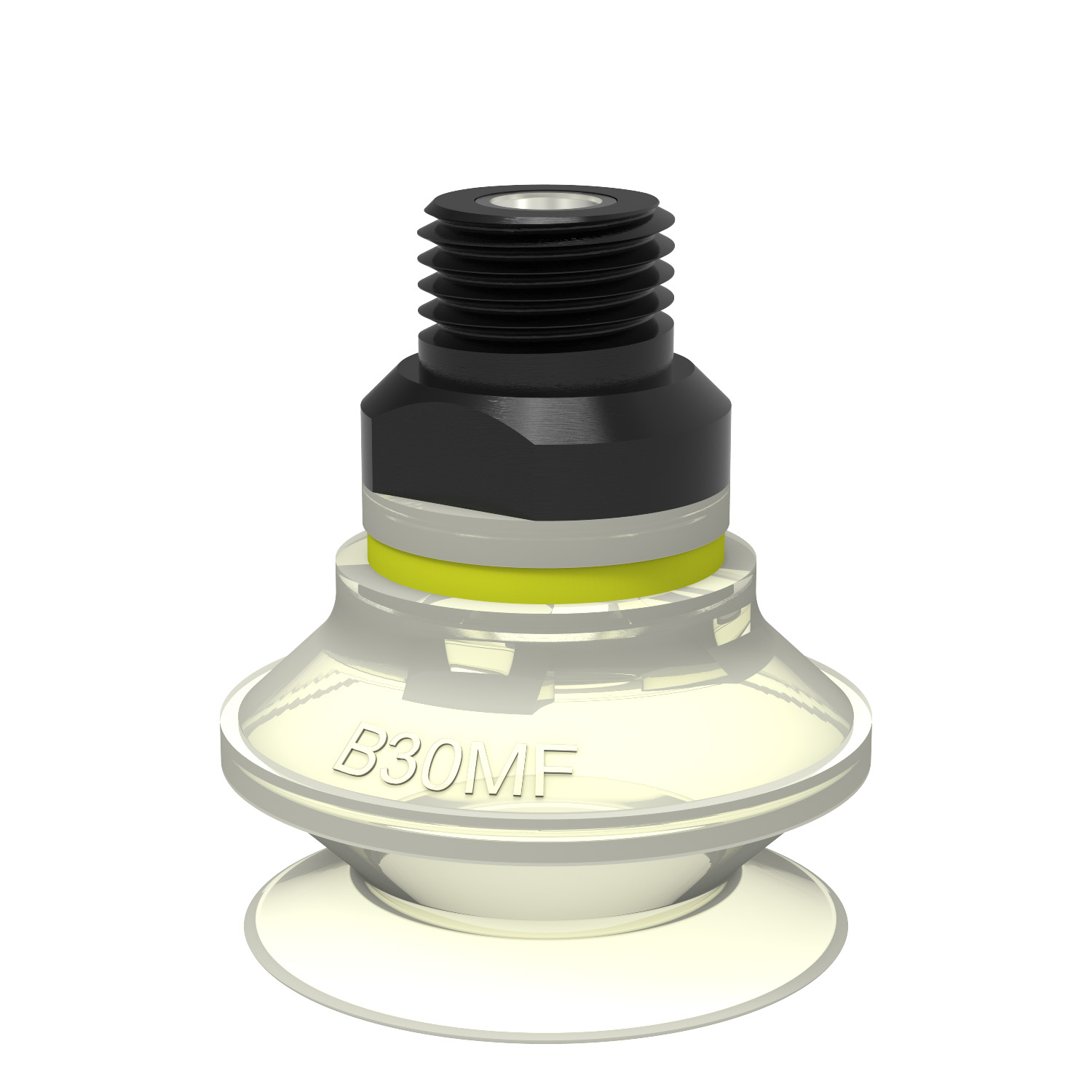

Piab Suction cup B30MF Thermoelastic polyurethane, 1/4" NPT male, with mesh filter

The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.

$22.89
Part Number
  • B30MF.40.04AC
Highlights...

Features

  • Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
  • Suitable for level adjustment.
  • Lifting movement to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface.
  • Material: TPE
  • Dimensions: 1.61 in. (length), 0.02 lb. (weight)
  • Fitting Size: 14 mm.
