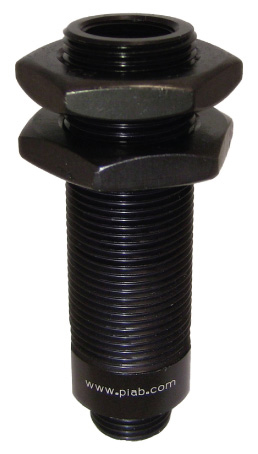

Piab Height adjuster G3/8" male x G3/8" female

The mounting element programme consists of mounting brackets, height adjusters, level compensators and suction cup extensions. The parts are designed to fit together for different sizes and applications. The parts are easily mounted on several standard ex.

$39.65
Part Number
  • 01.21.122
Highlights...

Features

  • Facilitates the positioning (y-direction) of a suction cup.
  • Provides an adjustable height extension between a mounting bracket (MB) and a suction cup.
  • Can be used with a suction cup / rod extension to further elongate the cup position.
  • Key handle to avoid rotation when connecting vacuum ports.
  • Material: Nitrile (NBR);Al;Steel
  • Temperature: -22 °F
  • Dimensions: 0.29 lb. (weight)
