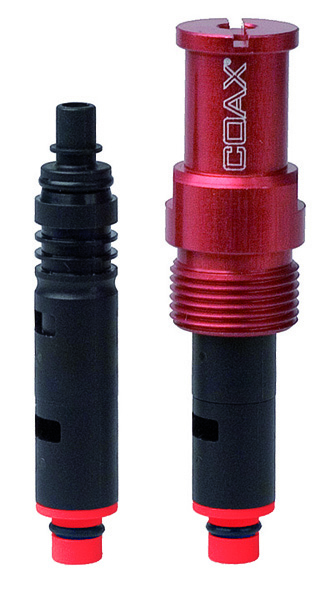

Piab COAX® cartridge MINI Xi10-2, holding cap

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$65.35
Part Number
  • 01.20.294
Highlights...

Features

  • Two-stage COAX® cartridge - MINI - with small mounting dimensions.
  • High vacuum flow at deep vacuum levels to 27.8 -inHg.
  • Large vacuum flow in relation to energy consumption.
  • Quick response time when deep vacuum is needed.
  • Good for handling sealed materials.
  • Used in VGS™3010 and VGS™3040.
  • Material: Nitrile (NBR);Al;PA;SS
  • Temperature: 14 °F
  • Dimensions: 0.01 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
