Piab T-connector M12 male, 2xM12 female

Our line includes inductive universal, electro-mechanical and pneumatic vacuum switches that are pre-set or adjustable.

$74.38
Part Number
  • 01.19.558
Highlights...

Features

  • Serially connects two or several vacuum switches, VS4128, into one common output to the PLC or BUS-I/0.
  • Quick and simple installation with standard male to female M12 eurofast cable assemblies.
  • Suitable if the PLC or BUS-I/O is limited to one or two input signals from a vacuum system with several vacuum switches.
  • Material: Thermoplastic Polyurethane (TPE-U);Zn
  • Temperature: -13 °F

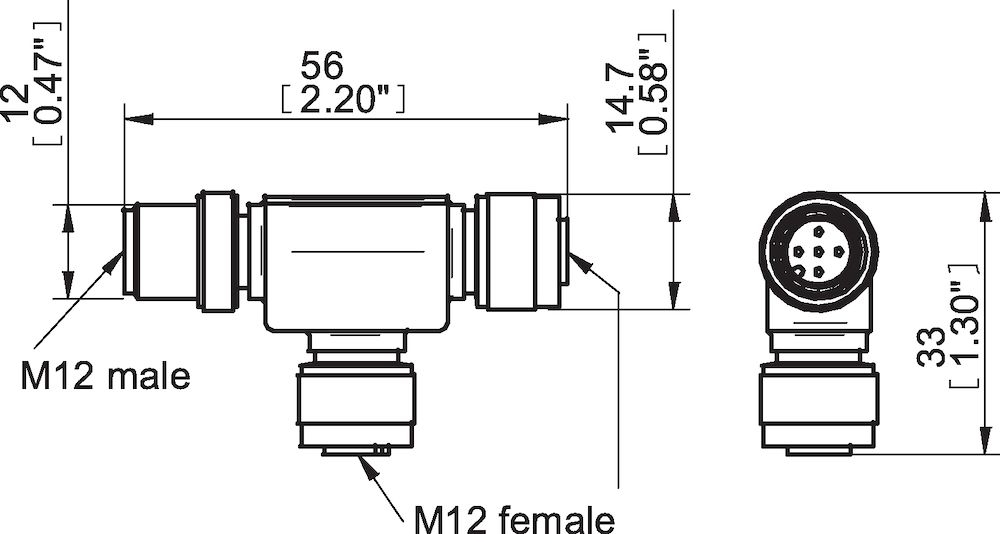

  • Dimensions: 0.58 in. (depth) x 2.20 in. (width) x 1.30 in. (length), 0.06 lb. (weight)
