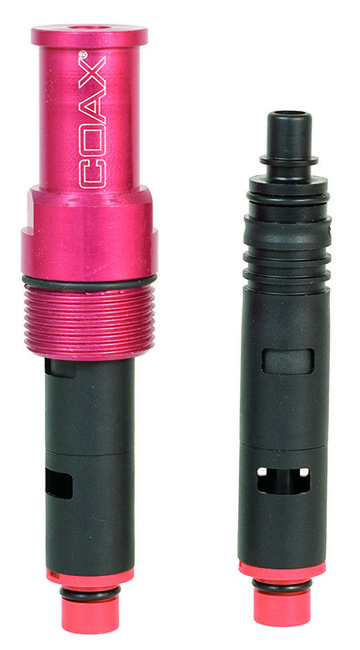

Piab COAX® cartridge MIDI Xi40-2

COAX® is an advanced solution for creating vacuum with compressed air. Based on Piab’s multistage technology, COAX® cartridges are smaller, more efficient and more reliable than conventional ejectors, that allows for the design of a flexible, modular and .

$138.69
Part Number
  • 01.18.747
Highlights...

Features

  • Two-stage COAX® cartridge – MIDI – with small mounting dimensions for limited spaces.
  • Deep end vacuum level, 28.1 -inHg.
  • High vacuum flow at deep vacuum levels, 21 to 28.1 -inHg.
  • Quick response time when deep vacuum is needed.
  • The all-round characteristics makes it suitable for sevaral type of vacuum applications.
  • Used in P5010 and VGS™5010.
  • Material: Nitrile (NBR);Al;PA;SS
  • Temperature: 14 °F
  • Dimensions: 0.04 lb. (weight)
  • Feed Pressure (Max): 0.7 MPa
