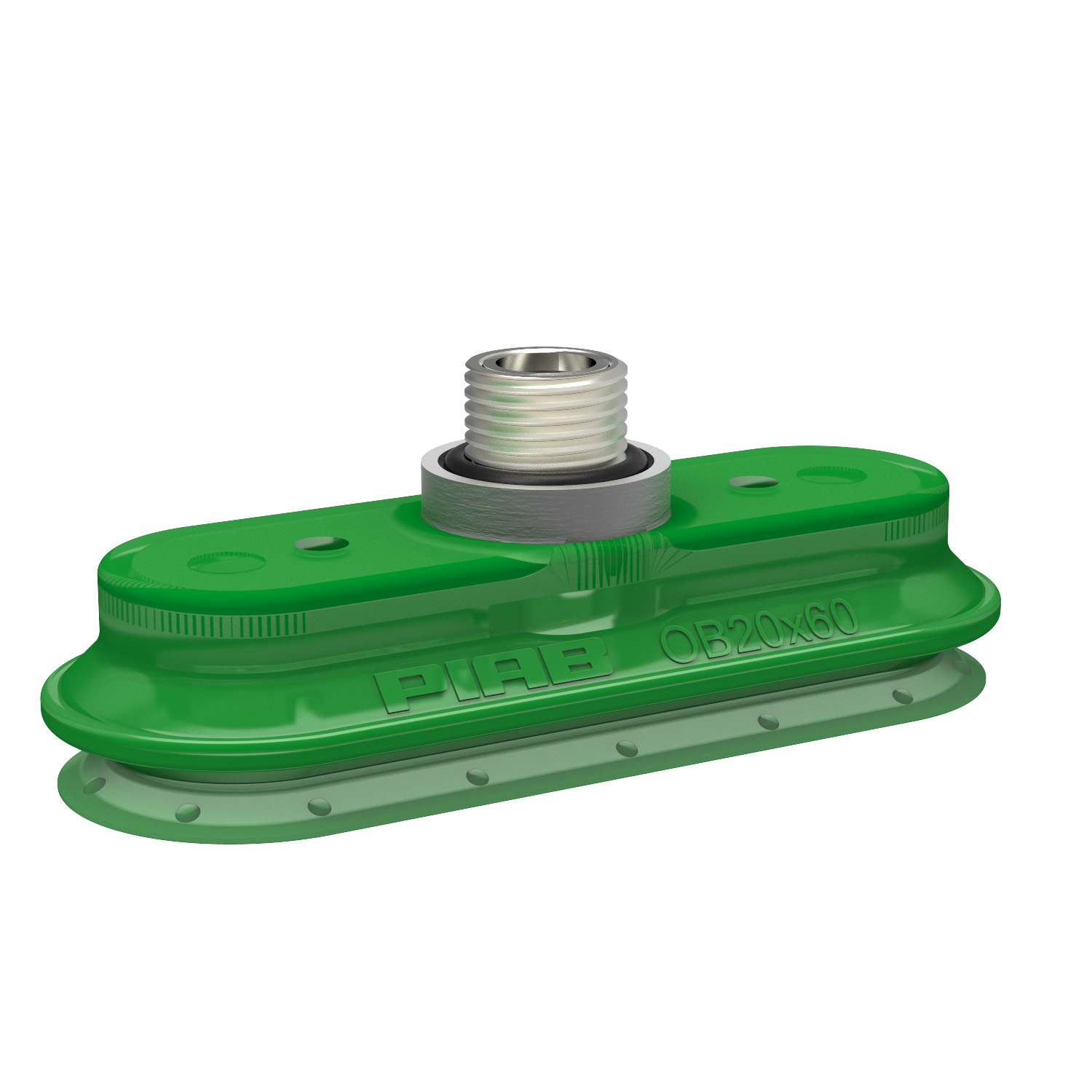

Piab Suction cup OB20x60P Polyurethane PU60, G1/8" male

The oval suction cups are suitable for handling of long and narrow objects and surfaces when maximum lifting force is desired. Oval suction cups are specially suitable for irregular surfaces and when level compensation is desired. This program of oval suc.

$58.99
Part Number
  • OB20X60P.5E.G31M
Highlights...

Features

  • Suitable for level adjustment. Can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • Lifting movement to separate small and thin objects.
  • DURAFLEX® are suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
  • Swivel option, prior to the locking operation, for easy positioning of the oval cup.
  • Material: Polyurethane (PU)
  • Dimensions: 2.44 in. (depth) x 0.93 in. (width) x 0.93 in. (length), 0.02 lb. (weight)
  • Fitting Size: 18 mm.
