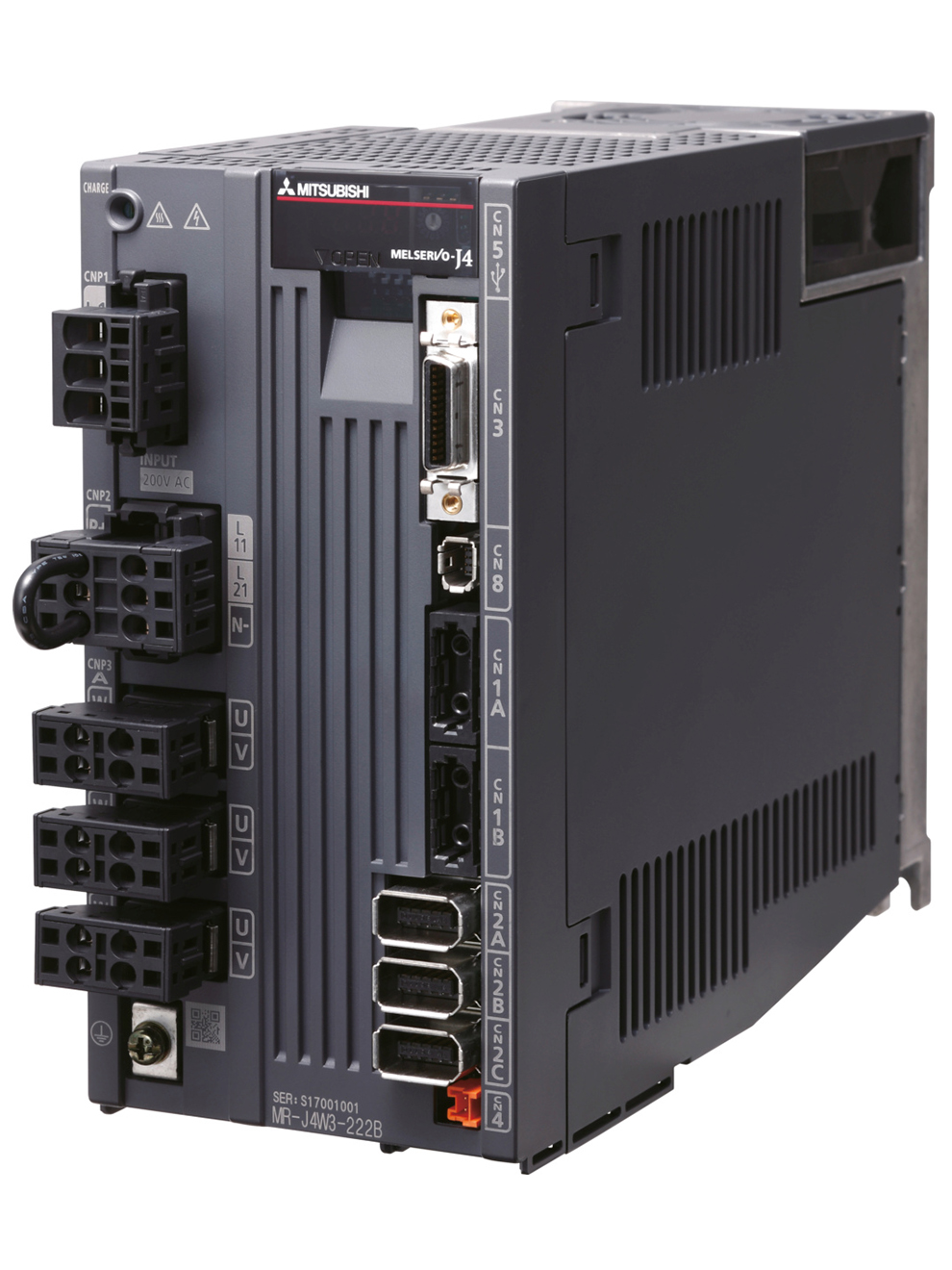

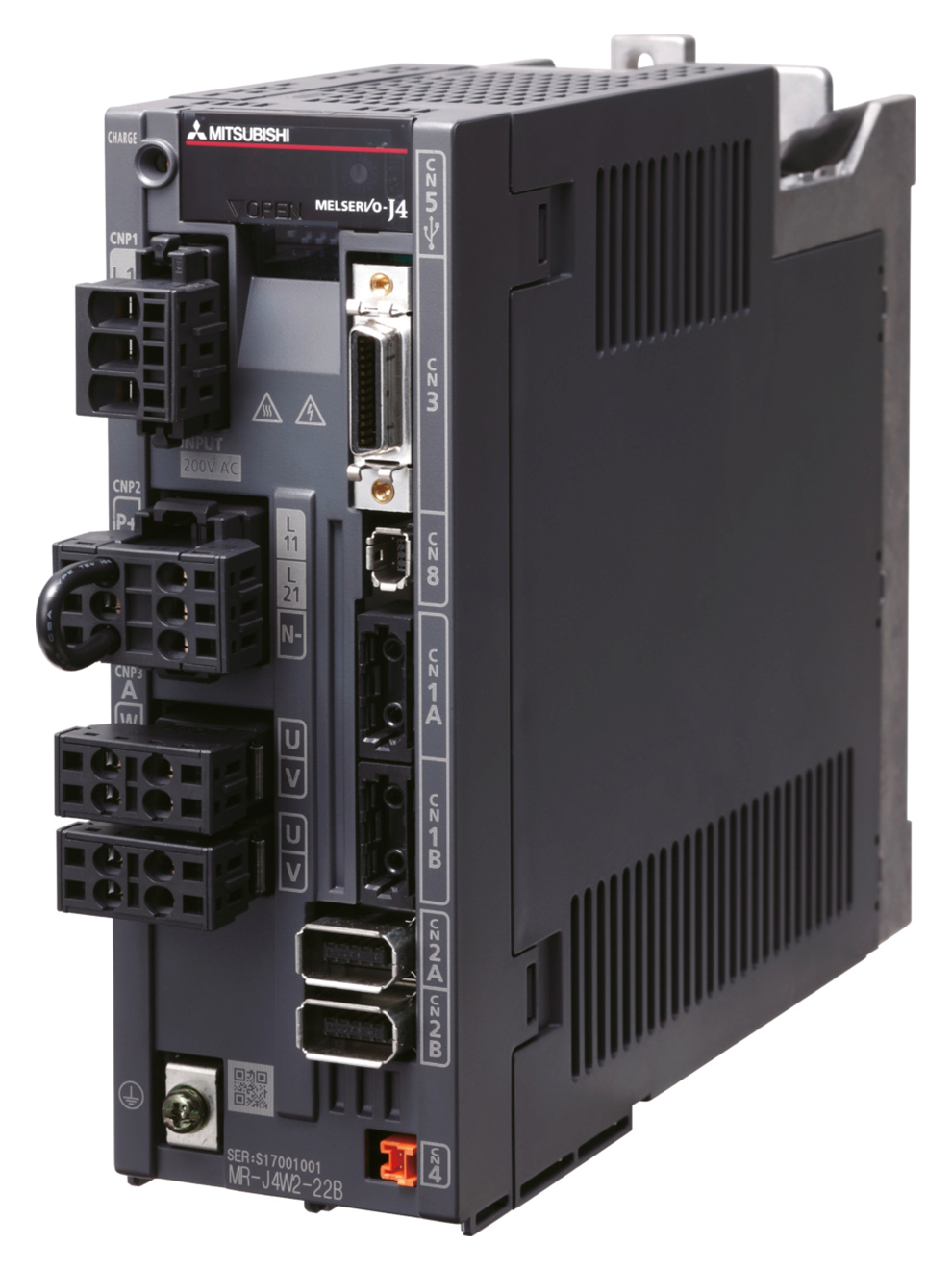

Mitsubishi MELSERVO-J4 Series Multi-Axis Servo Amplifier

2- and 3-axis servo amplifier with SSCNET III/H interface for advanced motion control, 0.03 to 1kW rated output. 200V class.

This model has 16 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Axes: 2, 3
  • Rated output: 0.03 to 1kW
  • Interface: SSCNET III/H
  • Power supply:
    • 1/3-phase 200VAC
    • 48VDC/24VDC
  • Ambient operating temperature: 0 to 55°C (non-freezing)
  • Ambient operating humidity: 90%RH maximum (non-condensing)
  • Compatible servo motor series: HG-KR, HG-MR, HG-SR, HG-JR, HG-UR, HG-AK, LM-F, LM-K2, LM-U2
    • *Configuration-specific exceptions, refer to brochure or contact Motion World engineer to confirm

The Mitsubishi MELSERVO-J4 Series Multi-Axis Servo Amplifier is a series of electric AC drives with high-speeds and accuracy. 2- and 3-axis configurations are available, with a SSCNET III/H compatible interface. These AC servo drives include output ranges from 30W up to 1kW, offering solutions for a range of industrial automation applications.

The MELSERVO-J4 Series supports large capacity, high-speed communication up to 1 Gbps, with communication cycles down to 0.222ms, and a speed frequency response of 2.5kHz. The amplifiers incorporate sophisticated control functions including advanced vibration suppression control II, adaptive filter II, robust filter, and one-touch auto tuning for rapid commissioning and optimized machine performance. Additional intelligent features include drive recorder, machine diagnosis, power monitoring, as well as a J3 compatibility mode.
