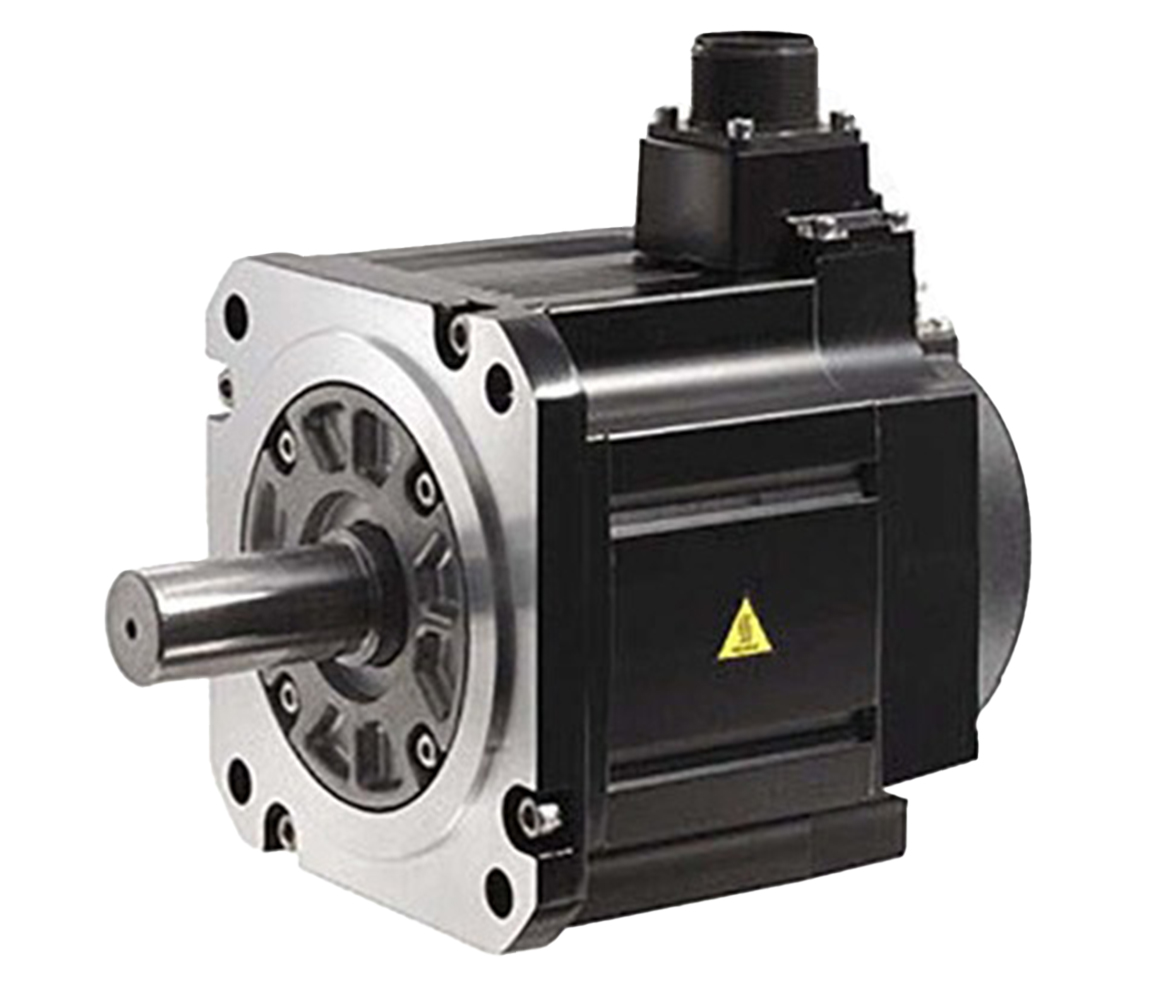

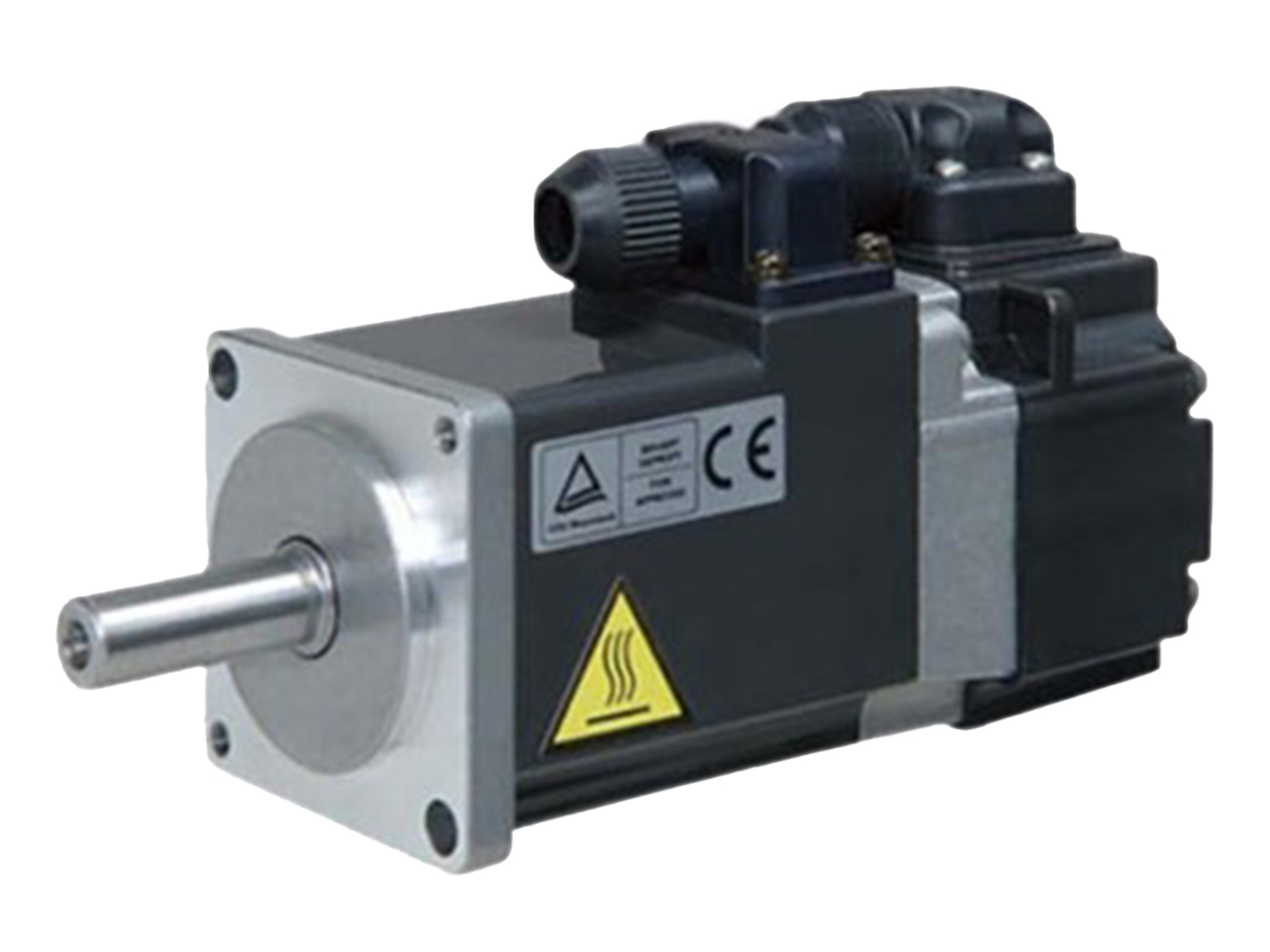

Mitsubishi MELSERVO-JET Series Rotary Servo Motor

Servo motor for small capacity, low inertia to medium inertia, medium capacity tasks. Up to 3000rpm rated speed, output 0.1 to 3kW. Absolute position encoder.

This model has 72 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated speed:
    • HG-KNS: 3000rpm
    • HG-SNS: 2000rpm
  • Maximum speed:
    • HG-KNS: 6000rpm
    • HG-SNS: 3000rpm
  • Rated output:
    • HG-KNS: 0.1 up to 0.75kW
    • HG-SNS: 0.5 up to 3kW
  • Ambient operating temperature: 0 to 40 ̊C (non-freezing)
  • 22-bit absolute position encoder
  • Enclosure rating:
    • HG-KNS: IP65
    • HG-SNS: IP67

The Mitsubishi MELSERVO-JET Series Rotary Servo Motor offers low inertia, small capacity (HG-KNS), and medium inertia, medium capacity (HG-SNS) motor configurations suited to a range of automated applications including Semiconductor/FPD/photovoltaic manufacturing systems, X-Y tables, robotics, feeders and sliders, food processing and packaging machines, press machines and more. The HG-KNS model offers rated speeds up to 3000 rpm (6000rpm max), whereas the HG-SNS model features rated speeds up to 2000rpm (3000rpm max). This series features the same dimensions, and is compatible with the same power and encoder cables of the MELSERVO-JE HG-KN and HG-SN Series.

The HG-KNS and KH-SNS Series integrate a standard-issued 22-bit absolute feedback encoder that operates at 4,194,304 pulses per revolution. Thanks to these inbuilt encoders, technicians can configure absolute position detection systems without additional components beyond a battery.
