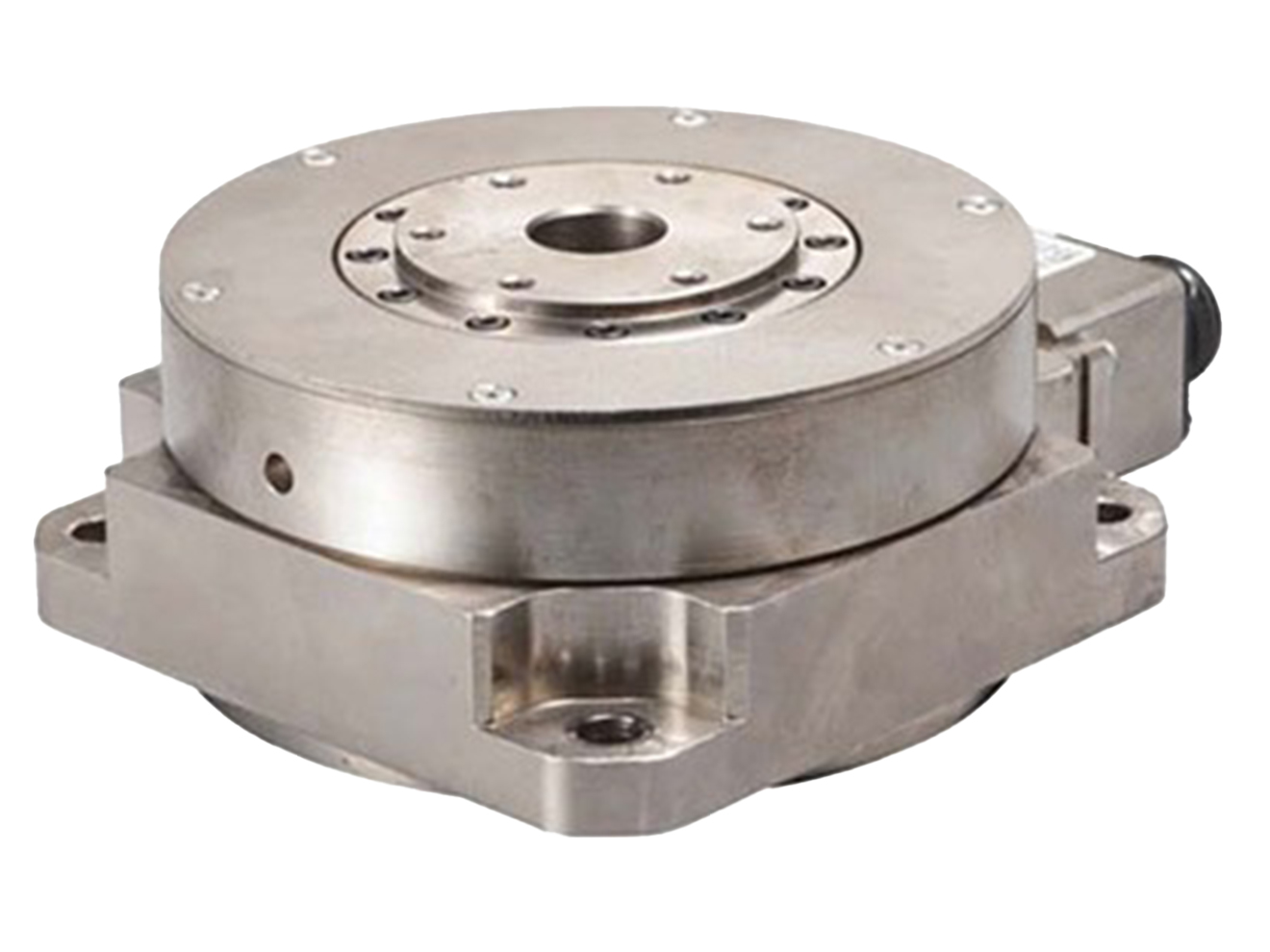

Mitsubishi MELSERVO-J4 TM-RFM High-Rigidity Series Direct Drive Motor

Permanent magnetic synchronous direct drive motor. Rated speeds of 200rpm, with torque up to 240Nm. Built-in absolute feedback encoder.

This model has 12 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated speed: up to 200rpm
  • Maximum speed: 500rpm
  • Rated output: 42 to 2513W
  • Rated torque: 2 to 240Nm
  • Maximum torque: 6 to 720Nm
  • Rated current: 1.3 to 6A
  • Maximum current: 3.9 to 57A
  • Recommended load to motor mass ratio: ≤ 50 times
  • Absolute accuracy: ±12.5s / ±15s
  • Ambient Temperature: 0 to 40 ̊C (non-freezing)
  • Ambient Humidity: 10 to 80% RH (non-condensing)
  • Design:
    • Hollow flanged shaft
    • Built-in absolute/incremental feedback encoder: 20-bit
    • Built-in thermistor
    • Natural cooling
  • Enclosure rating: IP42

The Mitsubishi MELSERVO-J4 TM-RFM High-Rigidity Series Direct Drive Motor is built around a magnetic synchronous motor, with a space-saving design that eliminates traditional mechanical transmission components. Direct load control paired with servo motor accuracy is compactly packaged with simplified installation via the hollow flanged shaft. The TM-RFM High-Rigidity Series is built to operate at rated speeds of up to 200rpm, with a maximum of 500rpm. Rated output is from 42 to 2513W, with torque from 2 to 240Nm(dependent on model.)

The TM-RFM High-Rigidity Series is equipped with a 20-bit absolute feedback encoder, which can deliver up to 1,048,576 pulses per revolution. This product line is built to handle low-speed and high-torque operations, an ideal solution for applications requiring robust and reliable rotary motion for high-load tasks.
