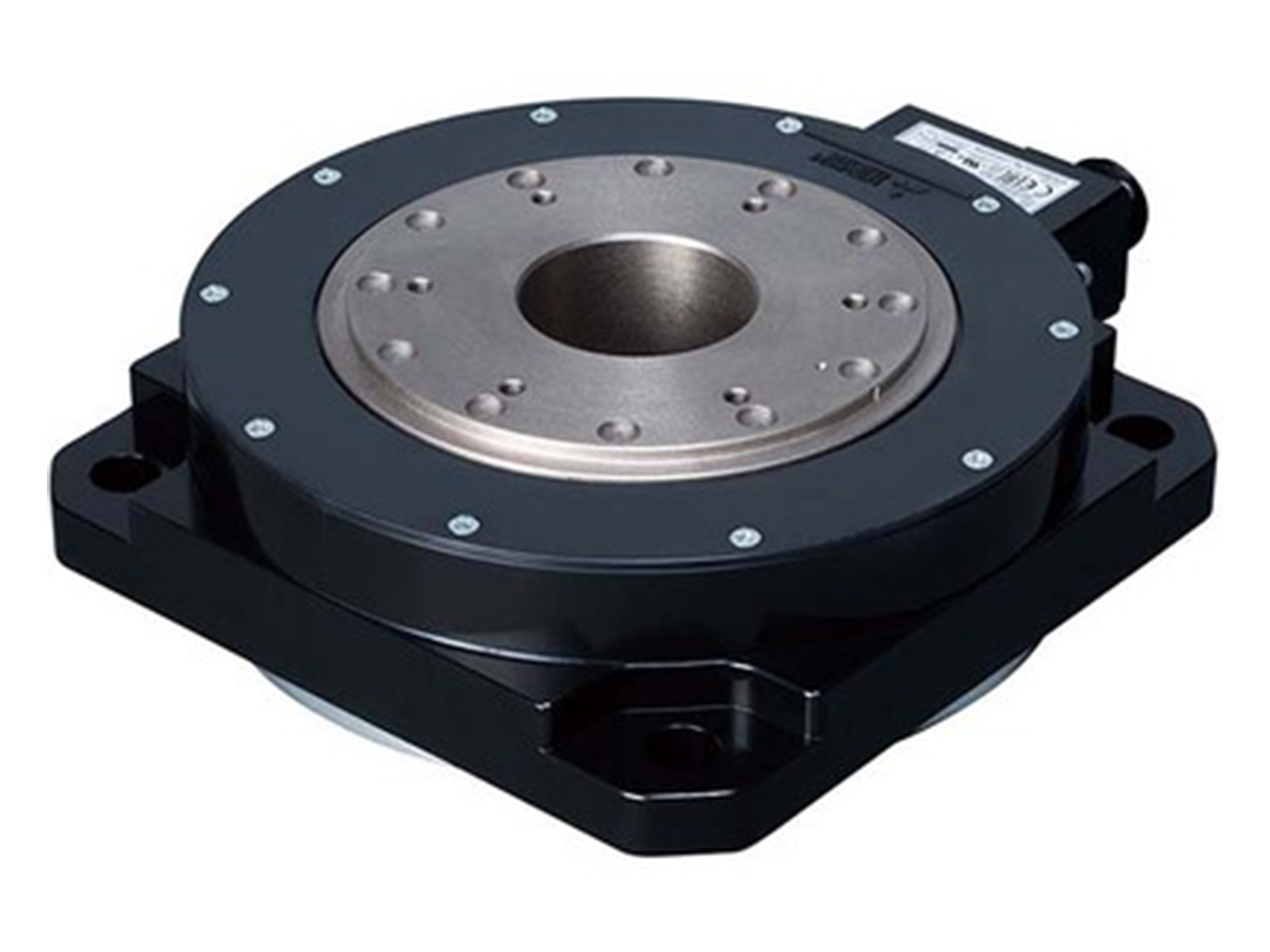

Mitsubishi MELSERVO-J4 TM-R Low-Profile Series Direct Drive Motor

Permanent magnetic synchronous direct drive motor. Rated speeds of 300rpm, with output up to 283W. Built-in absolute feedback encoder.

This model has 6 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Rated speed: 300rpm
  • Maximum speed: 600rpm
  • Rated output: 69 to 283W
  • Rated torque: 2.2 to 9Nm
  • Maximum torque: 8.8 to 27Nm
  • Rated current: 1.2 to 2.2A
  • Maximum current: 4.9 to 6.7A
  • Recommended load to motor mass ratio: ≤ 20 times
    • ≤ 50 times (002C30 model only)
  • Absolute accuracy: ±12.5s (±15s 002C30 model only)
  • Ambient Temperature: 0 to 40 ̊C (non-freezing)
  • Ambient Humidity: 10 to 80% RH (non-condensing)
  • Design:
    • Hollow flanged shaft
    • Built-in absolute feedback encoder: 22-bit (21-bit 002C30 model only)
    • Built-in thermistor
    • Natural cooling
    • Pilot or table style mounting
  • Enclosure rating: IP40

The Mitsubishi MELSERVO-J4 TM-R Low-Profile Series Direct Drive Motor is built around a magnetic synchronous motor, with a space-saving design that eliminates traditional mechanical transmission components. Direct load control paired with servo motor accuracy is compactly packaged with simplified installation via the hollow flanged shaft (table mounting available with TM-RU2M models). The TM-R Low-Profile Series is built to operate at rated speeds of 300rpm, with a maximum of 600rpm. Rated output is from 69 to 283W, with torque from 2.2 to 9Nm(dependent on model.)

The TM-R Low-Profile Series is equipped with a high-resolution absolute feedback encoder, which can deliver up to 4,194,304 pulses per revolution. The 004 variant offers increased torque capability when integrated with a servo amplifier one class higher, extending performance boundaries. This product line is built to handle low-speed, high-torque operations, an ideal solution for applications including index tables, spin-type cleaning systems, as well as rotary axes for polishing systems and material handling robots.
