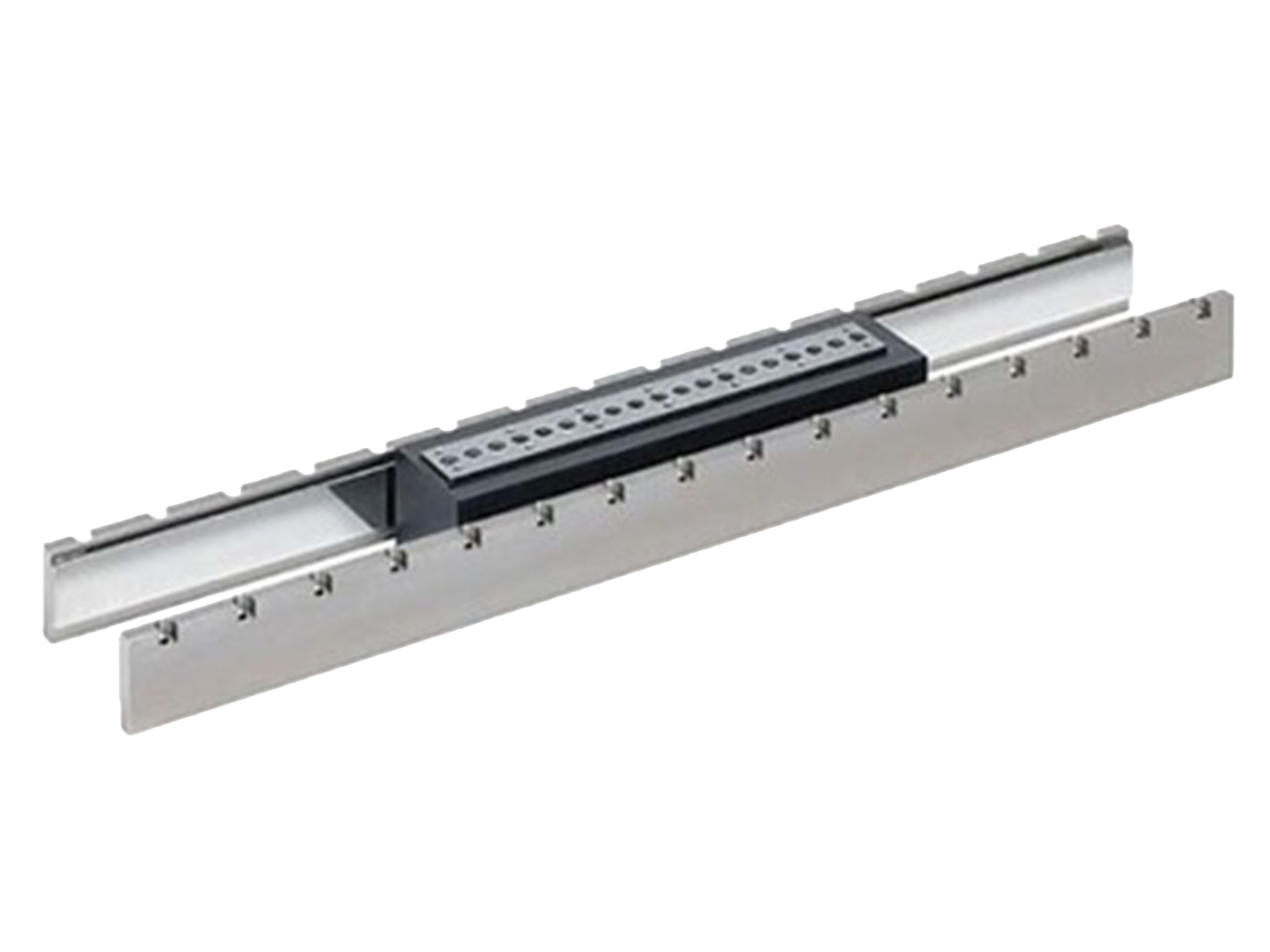

Mitsubishi MELSERVO-J4 LM-K2 Series Linear Servo Motor Primary Side

Primary side of a magnetic synchronous linear servo motor. Maximum speeds of 2m/s, with continuous thrust up to 2400N. Natural cooling.

This model has 7 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Maximum speed: 2m/s
  • Rated current: 2.3 to 25A
  • Maximum current: 7.6 to 79A
  • Thrust:
    • Continuous: 120 to 2400N
    • Maximum: 300 to 6000N
  • Magnetic attraction force: 0N (caused by assembly precision)
  • Recommended load to motor mass ratio: ≤ 30 times
  • Ambient Temperature: 0 to 60 ̊C (non-freezing)
  • Ambient Humidity: 10 to 80% RH (non-condensing)
  • Natural cooling
  • Built-in thermistor
  • Enclosure rating: IP00

The Mitsubishi MELSERVO-J4 LM-K2 Series Linear Servo Motor Primary Side is the coil section of a core-type magnetic synchronous motor built for use in electronic assembly and material handing applications. This product line is built to operate at a maximum of 2 meters per second. Continuous thrust is available up to 2400N, with maximum thrust up to 6000N(depending on model). This product line can be configured for clean environments since the design does not depend on ball screw, eliminating the potential for grease contamination. The LM-K2 Series also removes transmission mechanisms from the motor, including backlash, for smooth, quiet operation even at higher speeds. This servo motor series operates via a magnetic attraction counter-force, requiring at least two blocks of an identical secondary side (magnet).
