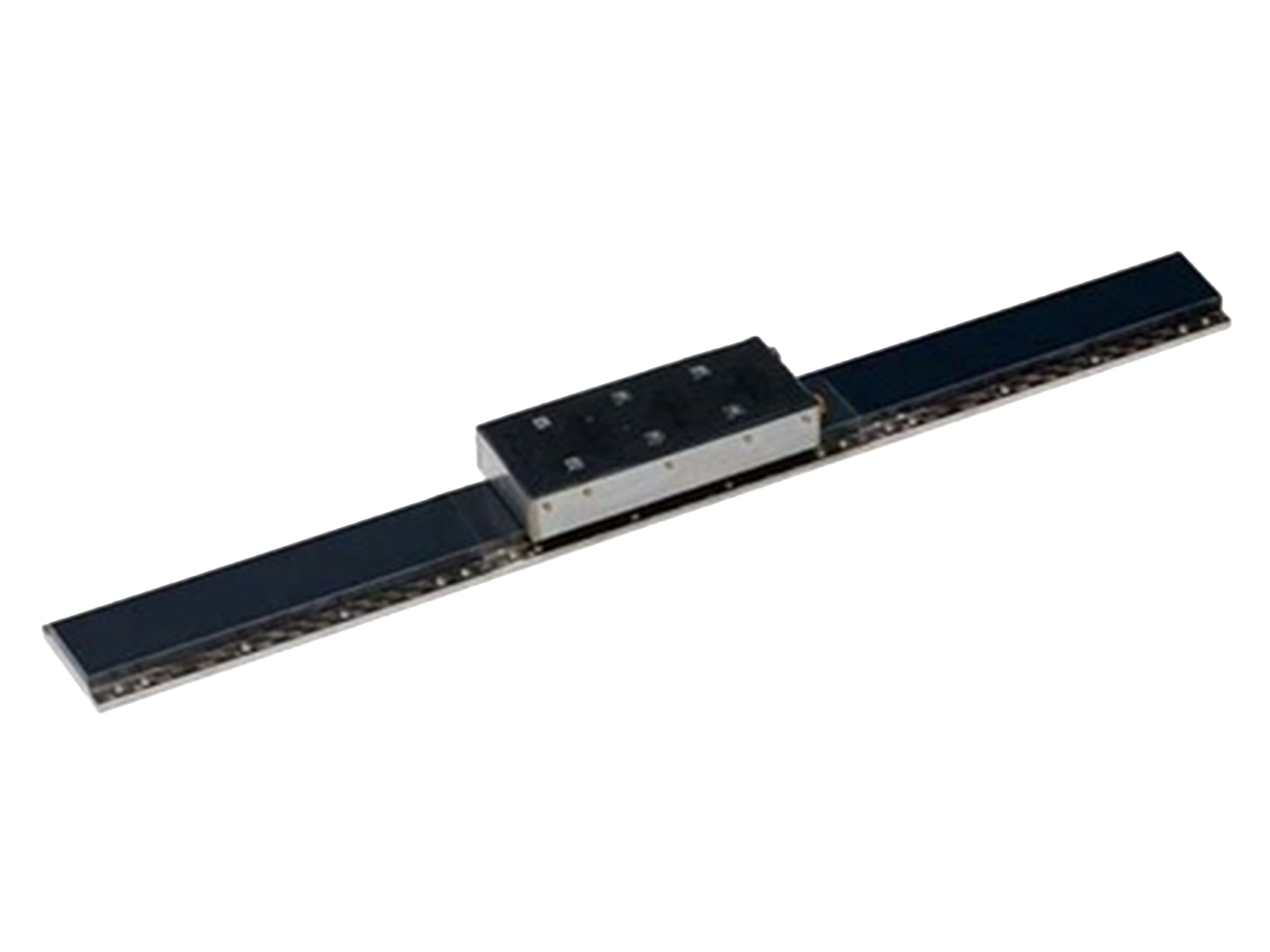

Mitsubishi MELSERVO-J4 LM-F Series Linear Servo Motor Primary Side

Primary side of a magnetic synchronous linear servo motor. Maximum speeds of 2m/s, with continuous thrust up to 2400N. Natural or liquid cooling.

This model has 4 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Maximum speed: 2m/s
  • Rated current: 4 to 15A (natural cooling) / 7.8 to 31A (liquid cooling)
  • Maximum current: 30 to 109A
  • Thrust:
    • Continuous: 300 to 1200N (natural cooling) / 600 to 2400N (liquid cooling)
    • Maximum: 1800 to 7200N
  • Magnetic attraction force: 4500 to 18000N
  • Recommended load to motor mass ratio: ≤ 15 times
  • Ambient Temperature: 0 to 60 ̊C (non-freezing)
  • Ambient Humidity: 10 to 80% RH (non-condensing)
  • Natural or liquid cooling methods
  • Built-in thermistor
  • Enclosure rating: IP00

The Mitsubishi MELSERVO-J4 LM-F Series Linear Servo Motor Primary Side is the coil section of a core-type magnetic synchronous motor. This product line is built to operate at a maximum of 2 meters per second. Continuous thrust is available up to 2400N, with maximum thrust up to 7200N(depending on model). Natural or liquid cooling methods are compatible with this product family.
