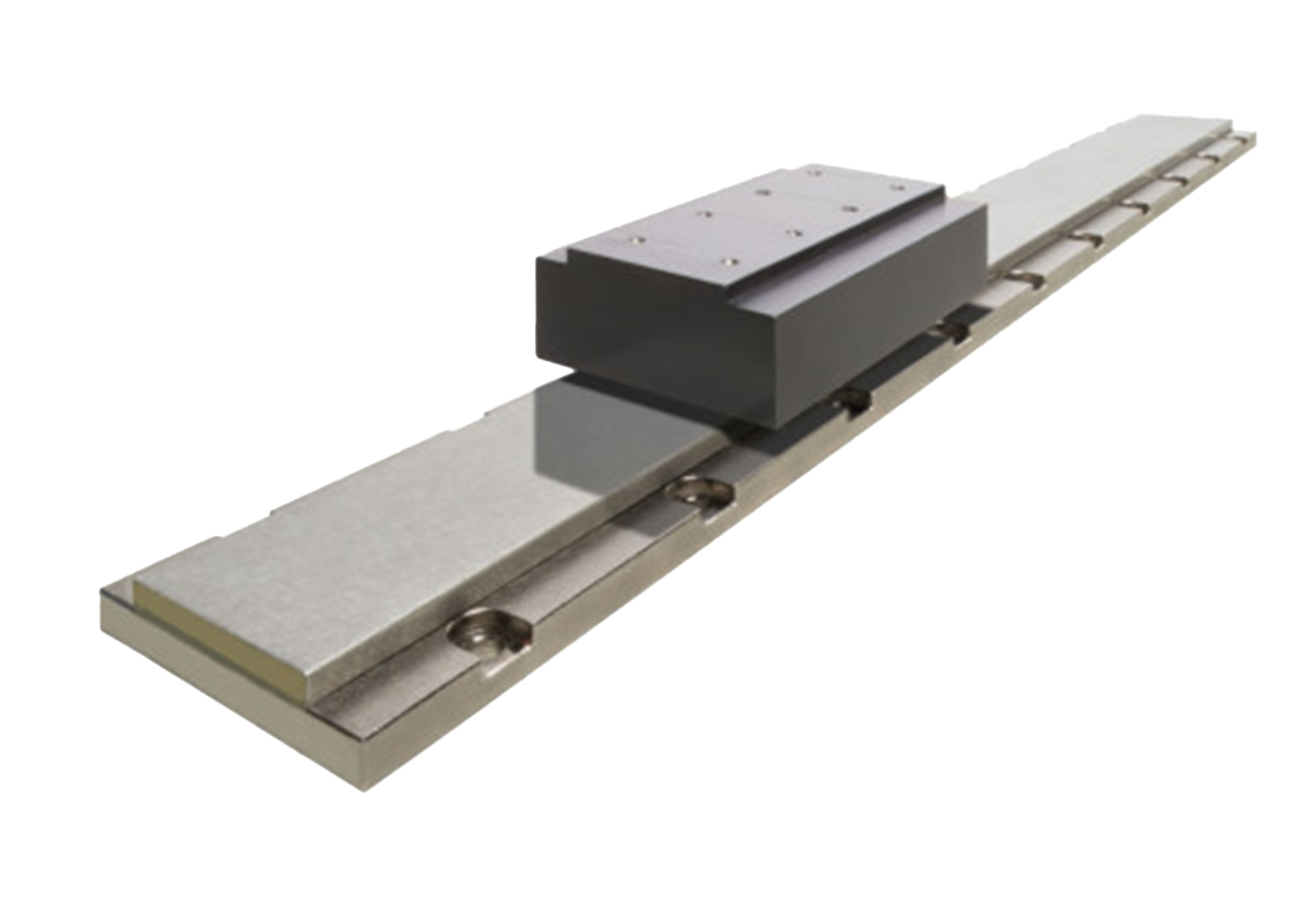

Mitsubishi MELSERVO JET LM-AJ Series Linear Servo Motor Secondary Side

Secondary side of a magnetic synchronous linear servo motor. Maximum speeds of 6.5m/s, with continuous thrust up to 446.8N.

This model has 12 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Maximum speed: 6.5m/s
  • Rated current: 2.3 to 4.6A
  • Maximum current: 9 to 18A
  • Thrust:
  • Continuous: 68.1 to 446.8N
  • Maximum: 214.7 to 1409.1N
  • Magnetic attraction force: 378.8 to 2485.9N
  • Recommended load to motor mass ratio: ≤ 10 to ≤ 30 times
  • Ambient Temperature: 0 to 40 ̊C (non-freezing)
  • Ambient Humidity: 10 to 80% RH (non-condensing)
  • Natural cooling
  • Enclosure rating: IP00

The Mitsubishi MELSERVO JET LM-AJ Series Linear Servo Motor Secondary Side is the magnet section of a core-type, magnetic synchronous motor. This product line is built to operate at a maximum of 6.5 meters per second. The space-saving design makes it ideal for low installation heights, such as those seen with compact X-Y tables. The high speed capability make the LM-AJ Series suited for integration with FPD assembly machines and semiconductor manufacturing systems. Continuous thrust is available up to 446.8N, with maximum thrust up to 1409.1N(depending on model).
