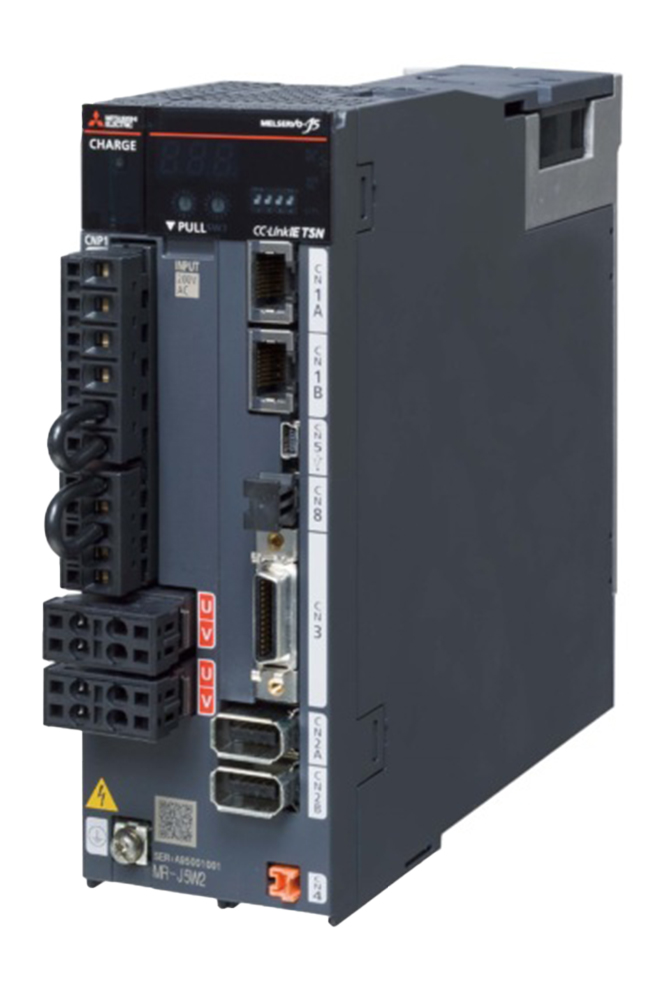

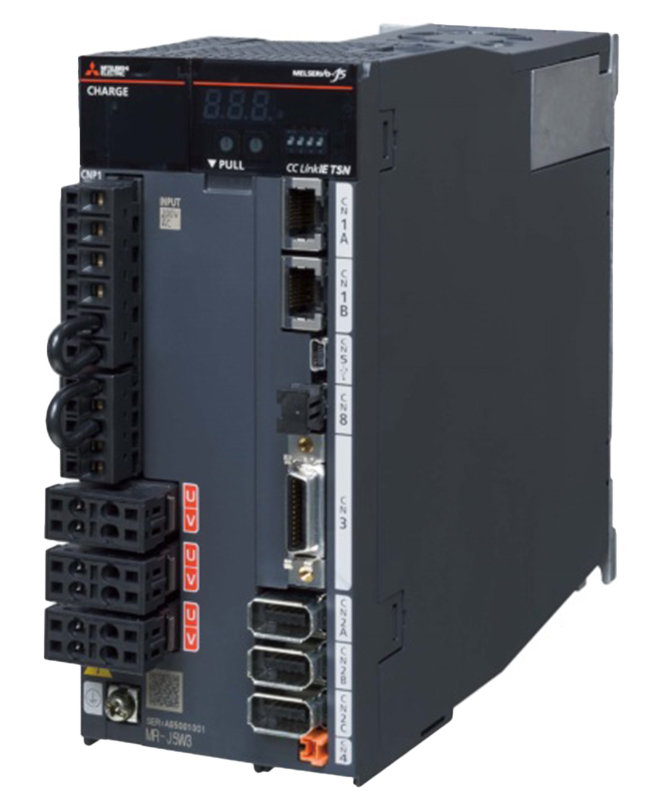

Mitsubishi MELSERVO-J5 Series Multi-Axis Servo Amplifier

2- and 3-axis servo amplifier with optional CC-Link IE TSN, EtherCAT, and SSCNET III/H interfaces for advanced motion control. 200V class.

This model has 18 variants.
Effective Sept 11th, 2025 Mitsubishi has added a 9.75% surcharge to this product. The surcharge will appear as a separate line item on each sales order.
Highlights...

Features

  • Axes: 2, 3
  • Rated output: up to 1kW (2-axis only)
  • Interface(s):
    • Ethernet-based TSN or EtherCAT (G)
    • SSCNET III/H (B)
  • Power supply:
    • 1/3-phase 200VACm or DC input
  • Compatible servo motor series (G variants):
    • HK-KT, HK-MT, HK-ST, LM-H3, LM-AJ, LM-K2, LM-U2, LM-AU, TM-RG2M, TM-RU2M, TM-RFM
    • *3-axis amplifier not compatible with LM-H3
    • Contact a Motion World engineer for B variant compatibility

The Mitsubishi MELSERVO-J5 Series Multi-Axis Servo Amplifier is a a 2- or 3-axis series of electric AC amplifiers with high-speeds and accuracy. Various interfaces are available for advanced motion control, including Ethernet-based CC-Link IE TSN or EtherCAT connection.

The MR-J5W-G supports large capacity, high-speed communication up to 1 Gbps. This model series features a minimum communication cycle of 62.5μs (TSN Class B), up to 500μs (TSN Class A), with a speed frequency response of 3.5kHz. The MR-J5W-B variants support the SSCNET III/H optical network. This amplifier features a minimum communication cycle of ≥ 0.222ms, with a speed frequency response of 3.5kHz.

The MR-J5W Series supports the following servo functionality: advanced vibration suppression control II; adaptive filter II; robust filter; quick tuning; auto tuning; one-touch tuning; tough drive function; drive recorder function; machine diagnosis function including failure prediction; power monitoring function; lost motion compensation function; scale measurement function; super trace control; continuous operation to torque control mode.
