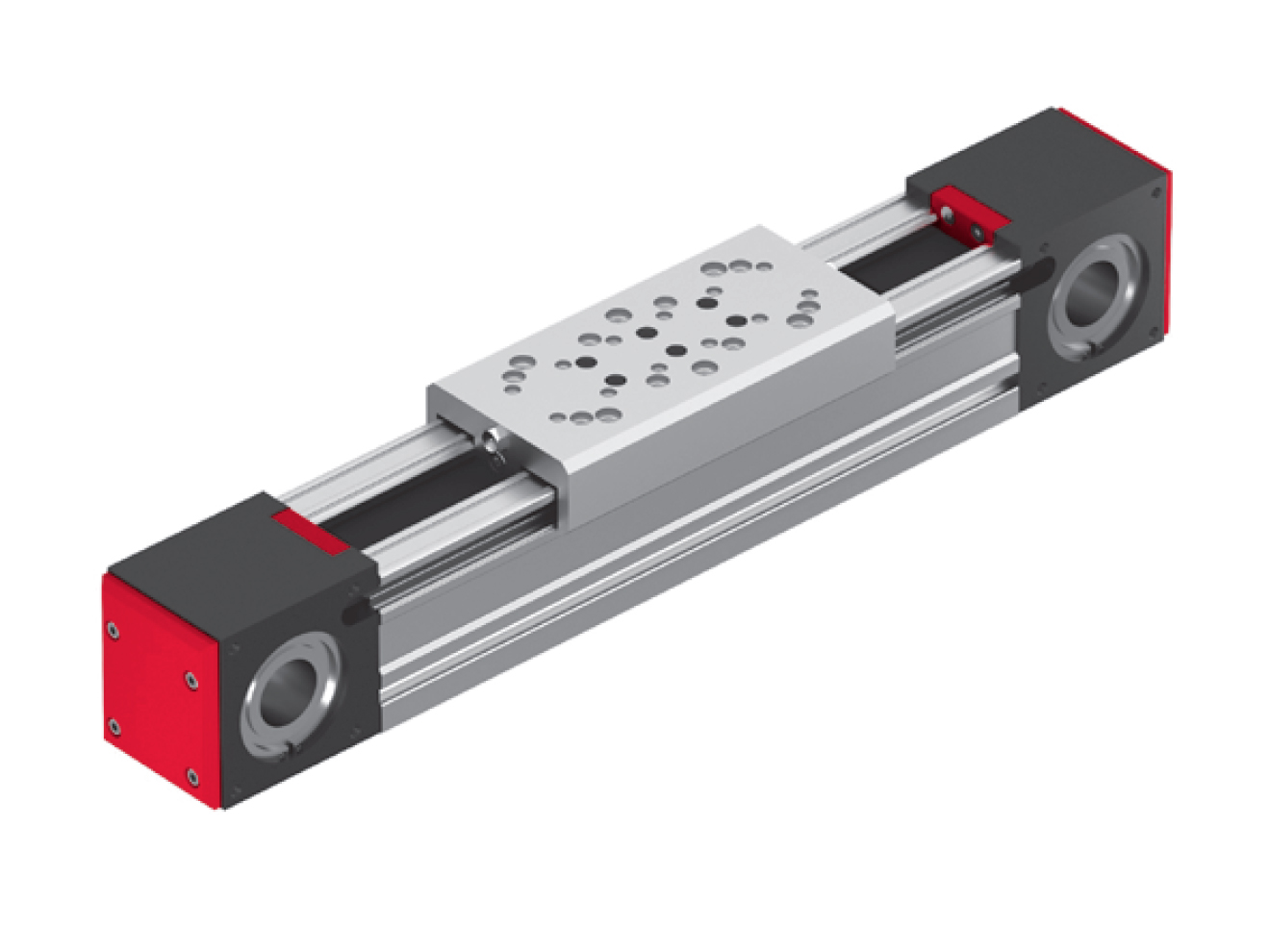

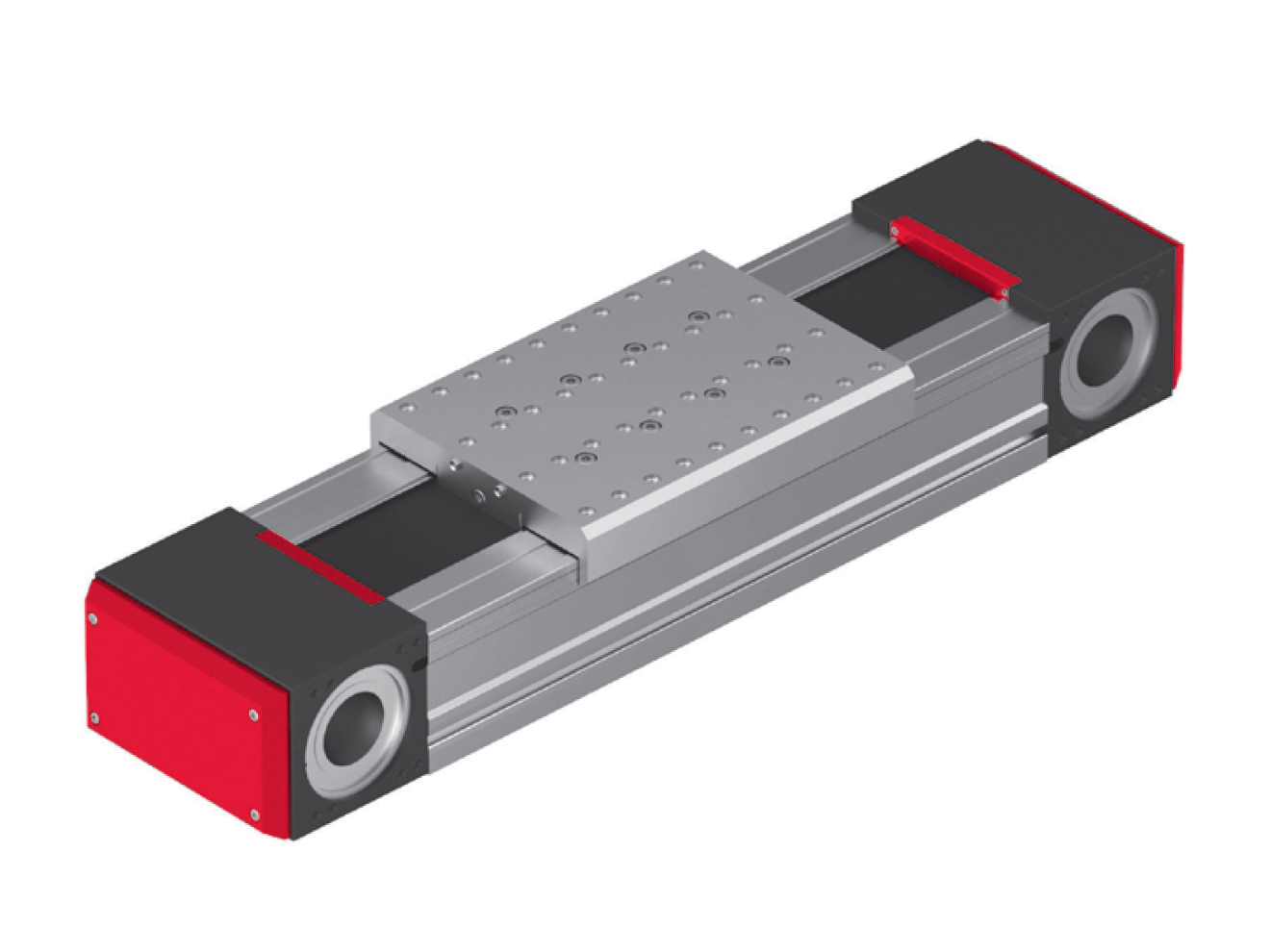

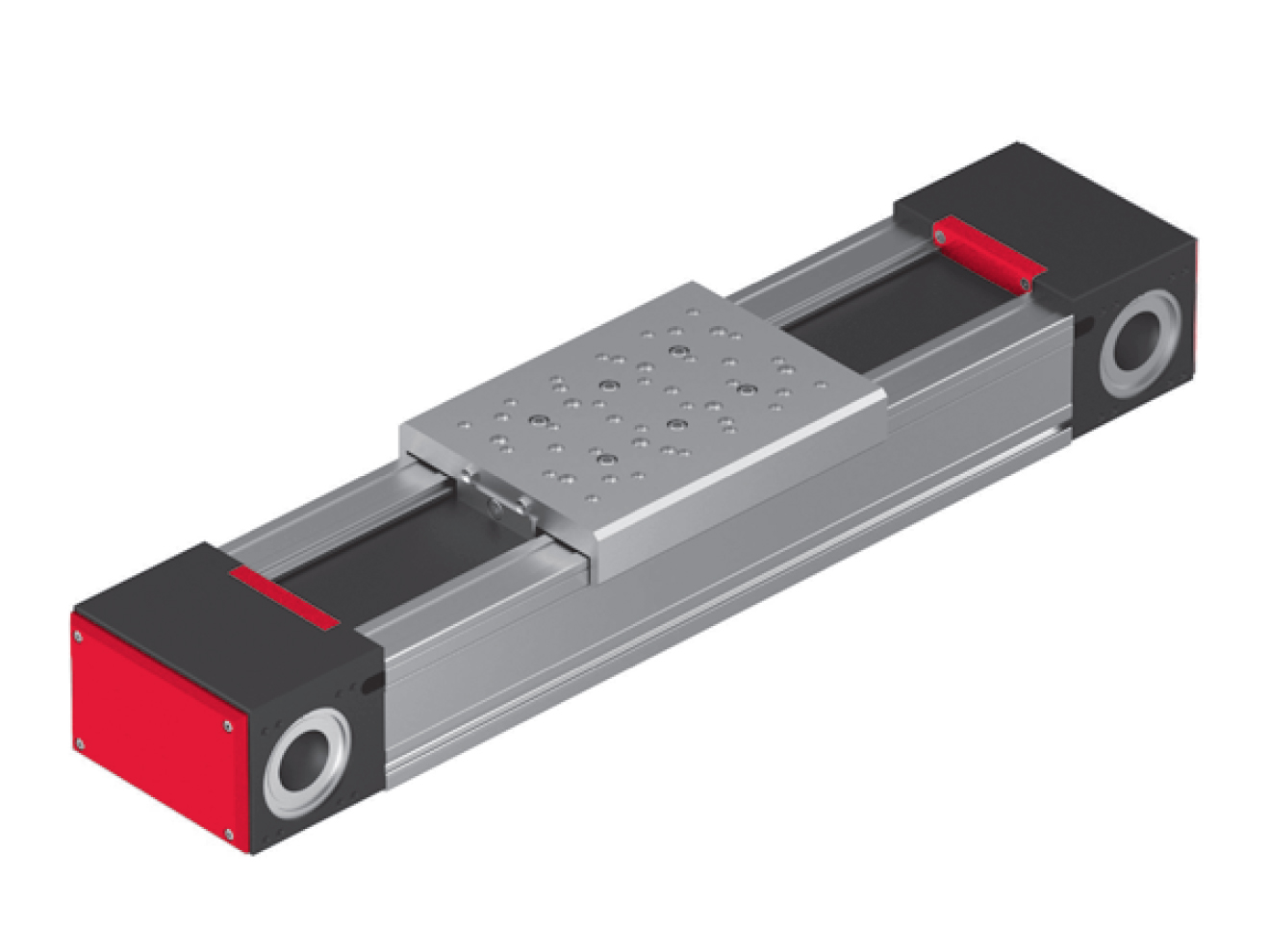

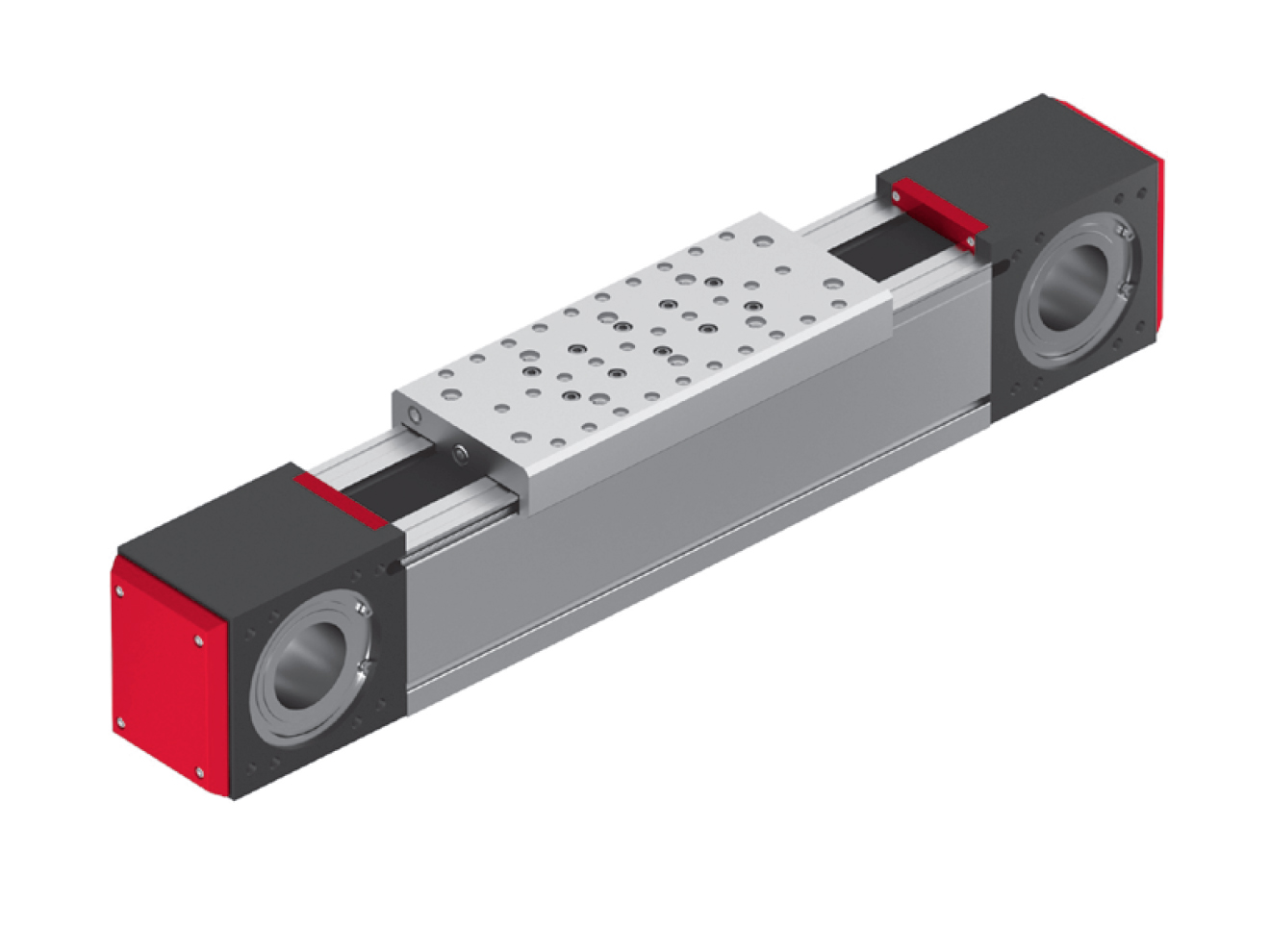

Aventics PEZ / PDZ Series Portal Axis

Single or double guide portal axis with variable stroke lengths and high speeds down to 3m/s, with repeatability within 0.05mm.

Call for pricing
Part Numbers
  • PEZ PDZ Series
  • PEZ-52
  • PEZ-65
  • PEZ-80
  • PEZ-100
  • PDZ-128
  • PDZ-160
  • PDZ-200
Highlights...

Features

  • Max stroke length: up to 5260mm
  • Hollow shafter diameter: up to 55mm
  • Max circumferential force:
    • PEZ variants: up to 2000N
    • PDZ variants: up to 4000N
  • Operating temperature: 10 to 40°C
  • Humidity: < 90 %
  • Max speed: down to 3m/s
  • Repeat accuracy: 0.05mm
  • IP30 protections
  • Highly rigid
  • Single or double linear guide
  • Fully symmetrical

What's in the Box

  • 1x Sensor set portal axes

The Aventics PEZ / PDZ Series Portal Axis is a durable, precise axis set with single (PEZ), or double (PDZ) linear guides available. The double guide ensures highly rigid configurations, with a fully symmetrical design. Repeatability is within 0.05mm with all models, with a maximum speed down to 3m/s. The PEZ and PDZ Series Portal Axes offer a flexible solution with high speed, reliable operation in various automated positioning processes.
