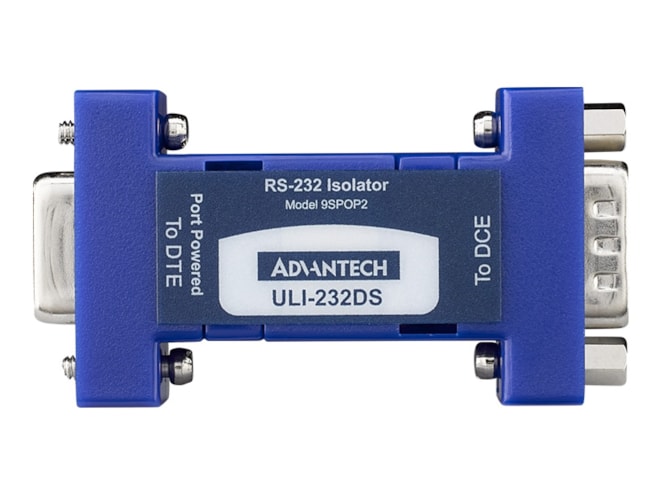

Advantech BB-9SPOP2

ULI-232DS - 9 PIN RS-232 Isolator, DB9 Male to DB9 Female, Port Powered.

$95.00
Part Number
  • BB-9SPOP2
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232
  • Mounting: Inline
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Power: Port Powered
  • Serial Port Connector Type: DB9
  • Temperature: 0 to 70C
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Isolation: 2.5kV
  • Serial Type: RS-232
  • ESD Protection: 8 kV (Air)
  • Isolation: 2,000 VDC
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • 2.5 kV isolation
  • Data rates up to 115.2 kbps
  • DB9 F / DB9 M
  • Port-powered on both sides, no external power supply required
A port-powered, two-channel isolator with a 2,500 Volts protection. It optically isolates both the RS-232 Transmit Data and Receive Data lines and RS-232 equipment from lightning surges, accidental high voltage shorts, and ground loops. RS-232 data signals TD and RD are supported up to 115.2 kbps.
