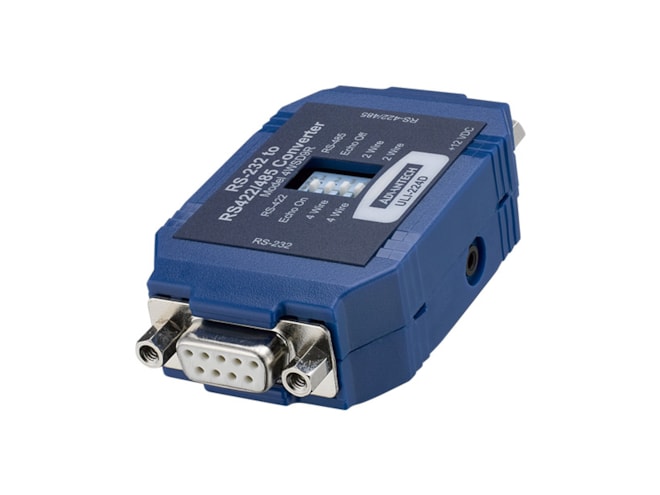

Advantech BB-4WSD9R

ULI-224D - RS-232 to RS-422/485 (2-Wire / 4-Wire) Converter, DB9 Female.

$95.00
Part Number
  • BB-4WSD9R
Highlights...

Features

  • Temperature: 0 to 70C
  • Serial Converter: RS-232 to RS-422/485
  • Serial Type: RS-422/485
  • Serial Port Connector Type: 1 x DB9 Female, 1 x DB9 Female
  • RS-232 Connector: DB9 Female
  • RS-422/485 Connector: DB9 Female
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (DC): 12 VDC
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • RS-232 to RS-485 Converter
  • Extend RS-232 data signals up to 1.2 km (4,000 ft.)
  • Data rate: 115.2 kbps
  • Quick, inline installation
  • DIP switch selectable RS-422 or RS-485
  • RS-232 port power or external 12 Vdc power jack (power supply not included, sold separately)
Provides RS-232 to RS-422/RS-485 conversion using either port-power or an external power supply. RS-232 Transmit Data is converted to balanced RS-422 or RS-485 data. Received RS-422/485 signals are converted to RS-232. The converter may be powered by an external 12 VDC power supply with a 2.5mm plug
