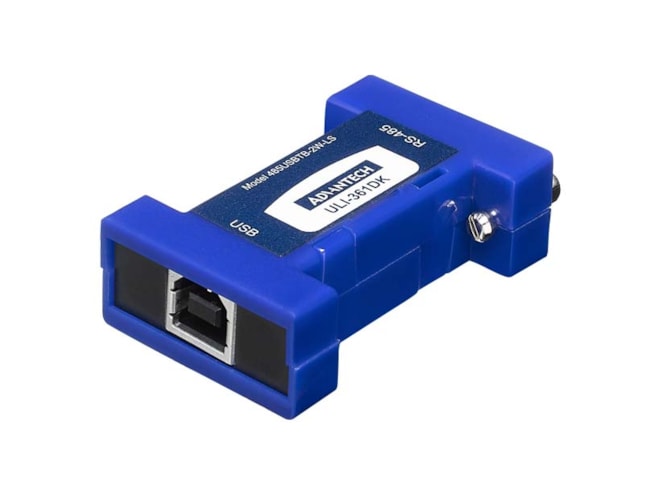

Advantech BB-485USB9F-2W-LS

ULI-361DK - USB to RS-485 2 Wire (DB9 Female) Converter. Locked Serial Number.

$106.00
Part Number
  • BB-485USB9F-2W-LS
Highlights...

Features

  • Technology: USB
  • Mounting: Inline
  • Standard: USB 2.0
  • Power: Bus Powered
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Temperature: 0 to 70C
  • Connector Type: Type B (Female)
  • Serial Type: RS-485 2-wire
  • Locked Serial Number: Yes
  • Serial Connector: DB9 Female
  • Serial Port Connector Type: DB9 Female
  • Maximum Serial Transmission Speed: 921.6 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • Serial Standard: RS-485
  • USB to RS-485 2-Wire Converter
  • Small Form Factor
  • USB Port Powered
  • DB9 F Serial Connector
  • 921.6 kbps Serial Data Rate
  • USB Cable Included
  • Locked Serial Number - Simplifies use in service pool
Supports a 2-Wire USB to RS-485 converter, long range and multi-drop communication. Easy to set up with DB9 F on the RS-485 side a USB cable is included. USB Port Powered.
