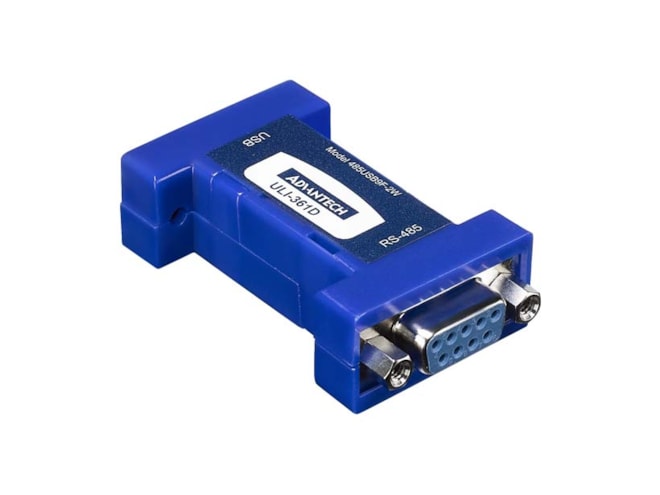

Advantech BB-485USB9F-2W

ULI-361D - USB to RS-485 2 Wire (DB9 Female) Converter.

$106.00
Part Number
  • BB-485USB9F-2W
Highlights...

Features

  • Technology: USB
  • Serial Standard: RS-485
  • Mounting: Inline
  • Power: Bus Powered
  • Standard: USB 2.0
  • Temperature: 0 to 70C
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female)
  • Serial Type: RS-485 2-wire
  • Serial Connector: DB9 Female
  • Serial Port Connector Type: DB9 Female
  • Maximum Serial Transmission Speed: 921.6 Kbps
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • USB to RS-485 2-wire converter
  • 921.6 kbps serial data rate; 12Mbps (USB)
  • USB port powered
  • Serial DB9 female & USB Type B female connectors
  • Small form factor, in-line installation
  • USB cable included, 1 m
Supports 2-wire RS-485, long range and multi-drop communication. 12 Mbps (USB) speed. Easy to set up with DB9 F on the RS-485 side. A 1m USB cable is included. USB port powered.
