Advantech BB-485SD9TB

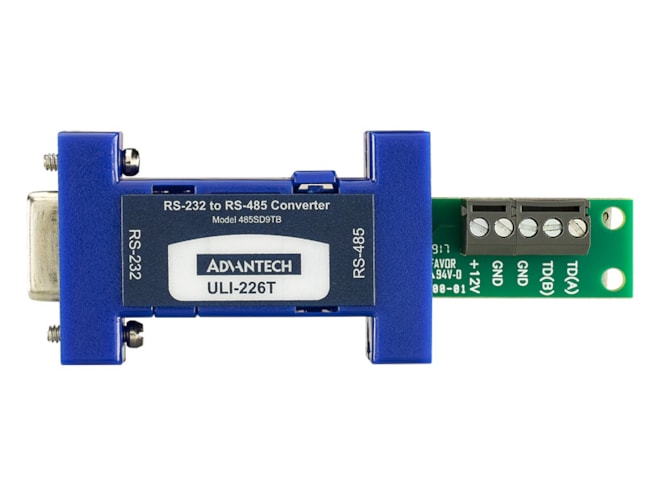

UULI-226T - RS-232 (DB9 Femal to RS-485 2-Wire (TB) Converter, Port Powered.

$89.00
Part Number
  • BB-485SD9TB
Highlights...

Features

  • Temperature: 0 to 70C
  • Serial Converter: RS-232 to RS-485
  • Serial Type: RS-485
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • RS-232 Connector: DB9 Female
  • RS-422/485 Connector: Terminal Block
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Power Input (DC): 12 VDC
  • Power Input (Serial): Port-Powered from RS-232
  • Mounting: Inline
  • Extend RS-232 data signals up to 1.2 km
  • Convert RS-232 TD and RD to RS-485 signals
  • Data rate: up to 115.2 kbps
  • Automatic Send Data Control - no software drivers necessary
  • Powered from RS-232 handshake lines - no power supply required
Port-powered, 2-channel converter changes RS232 TD and RD to RS485 for longer distance and multidrop function. Automatic Send Data Control enables driver when data is present on RS232 side. Powered from RS232 data and handshake lines (high or low). External power optional - PS sold separately.
