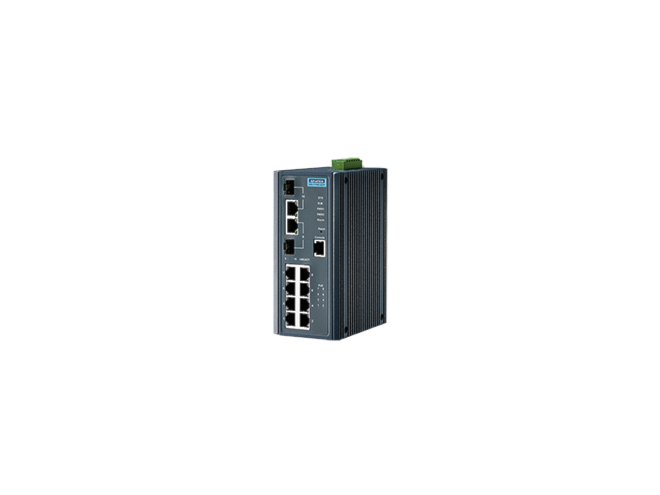

Advantech EKI-7710E-2CPI-AU

8FE + 2G Combo Managed POE+ switch w/Wide temp.

$1,047.97
Part Number
  • EKI-7710E-2CPI-AU
Highlights...

Features

  • RJ-45 Port Connector Type: 8 x RJ-45 + 2 x RJ-45/SFP combo ports
  • RJ-45 Transmission Speed: 10/100 Mbps ; 10/100/1000 Mbps
  • Power Input (DC): 24 ~ 48 VDC
  • Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
  • RJ-45 Transmission Distance: 100 m
  • Fiber Transmission Distance: Up to 110 km
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 5.6Gbps
  • Jumbo Frame: 9,216 bytes
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • IP Rating: IP30
  • Enclosure (Metal): Metal
  • Weight: 1.2 kg
  • Mounting: DIN-rail, Wall
  • Relative Humidity: 10~95%
  • Time: 858,835 hours
  • Method: Telcordia(Relax), GB
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Power Consumption: 12.1W (system)
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Safety: UL60950, UL 508
  • EMI: CE, FCC Class A
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
  • Vibration: IEC 60068-2-6
  • Warranty Period: 5 years
  • Place of production: Taiwan
  • 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • Dual 24~48 V DC power input and 1 relay output
The EKI-7710E-2CP/2CPI supports eight Power over Ethernet (PoE ) ports and two Gigabit combo ports. It can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710E series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710E series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.
