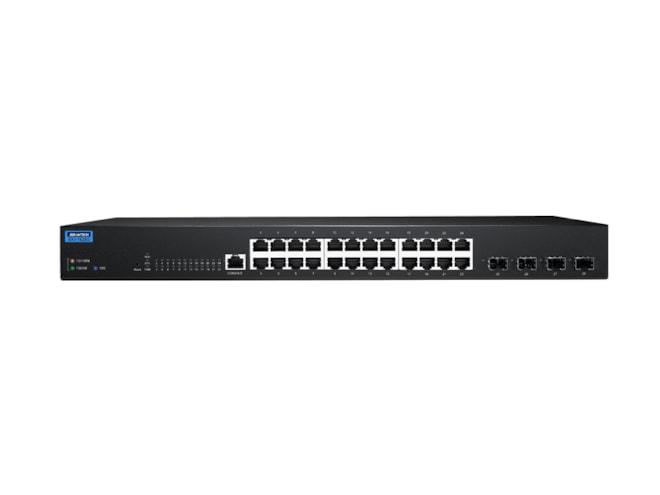

Advantech EKI-7428G-4X-AE

Features

• Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3ab, 802.3az, 802.3ae
• EMC: EN 55032:2015+AC:2016 ClassA
• EN 61000-3-2:2014 Class A
• EN 61000-3-3:2013
• EN 55035:2017
• FCC Part 15, Subpart B
• Safety: LVD 62368-1
• Temperature (Max. Operating): 60°C (140°F)
• Temperature (Min. Operating): 0°C (32°F)
• Operating Temperature: 0 ~ 60°C (32 ~ 140°F)
• Operating Humidity: 10~95%
• Fiber Transmission Speed: 1G/2.5G/5G/10G
• Fiber Transmission Distance: Up to 100 km
• Fiber Port Connector Type: SFP+ cage
• Fiber Port Interface: SFP+
• RJ-45 Transmission Distance: 100 m
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Mounting (Rack Mount): Yes
• Dimensions (W x H x D): 441 x 44 x 196 mm
• Power Input (AC): 100 ~ 240 VAC
• 24 Gigabit Ethernet ports and 4 10G SFP ports
• 0 to 60°C operating temperature range
• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
• IXM function enables f deployment
• Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D), MSTP
