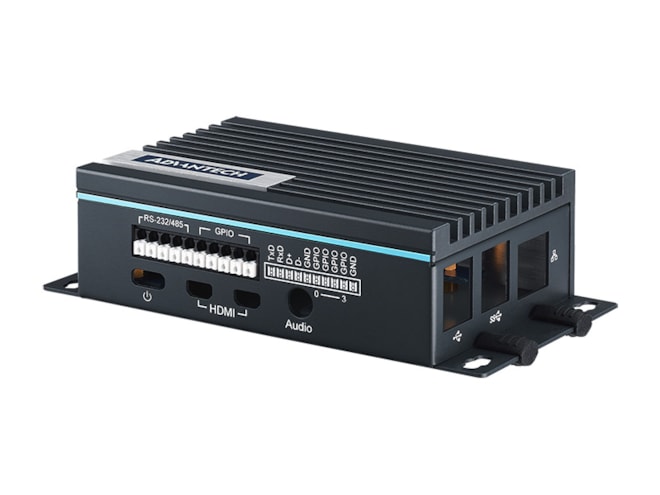

Advantech UNO-220-P4N2AE

Industrial Raspberry Pi 4 Gateway Kit with POE function, TPM, 1 x RS-232/485, 8 x GPIO, 8 GB SD Card, and AdvRaspbian OS.

$130.00
Part Number
  • UNO-220-P4N2AE
Highlights...

Features

  • Ingress Protection: IP40
  • Operating Temperature: 0~50 °C (32~122 °F)
  • Relative Humidity: 10~95% RH (non-condensing)
  • Certification: CE, FCC
  • OS Support: Raspbian
  • Storage: 1 x 8 GB Micro SD card
  • Serial Ports: 1 x RS-232/485 (Terminal Block)
  • Dimension (W x H x D): 100 x 70 x 32 mm
  • Enclosure: Aluminum housing
  • Weight (Net): 0.5 kg (1.1 lb)
  • I/O: 8 x GPIO
  • Power Consumption: 1.5 W @ 5 VDC
  • Watchdog Timer: 1~255 s
  • Mounting: Stand, Din-rail
  • Industrial-grade gateway kit provides Raspberry Pi-ready solutions for rapid prototyping
  • Protect your Raspberry Pi device from dust and temperature extremes
  • Designed for Raspberry Pi single-board computers - develop unique IoT applications
  • UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environments
  • Industrial grade I/O board for RS-232/485 and GPIO extension
  • Build IoT applications with the UNO-220 Industrial Kit for Raspberry Pi 4
  • Provide optimum protection and 2-years warranty
  • Amazon AWS IoT Greengrass certified
Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; UNO-220 is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications.
