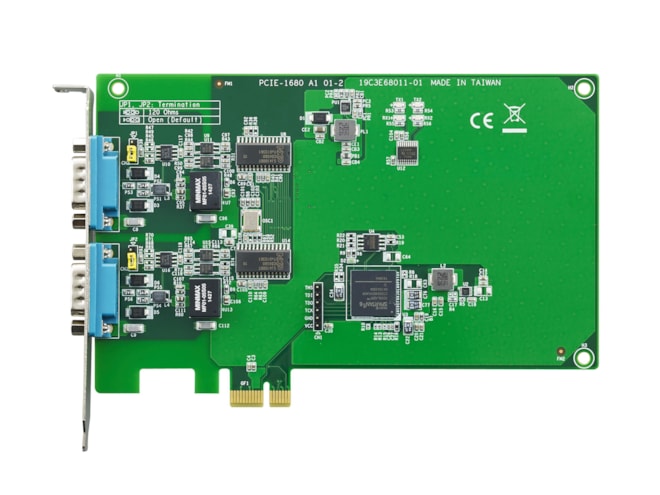

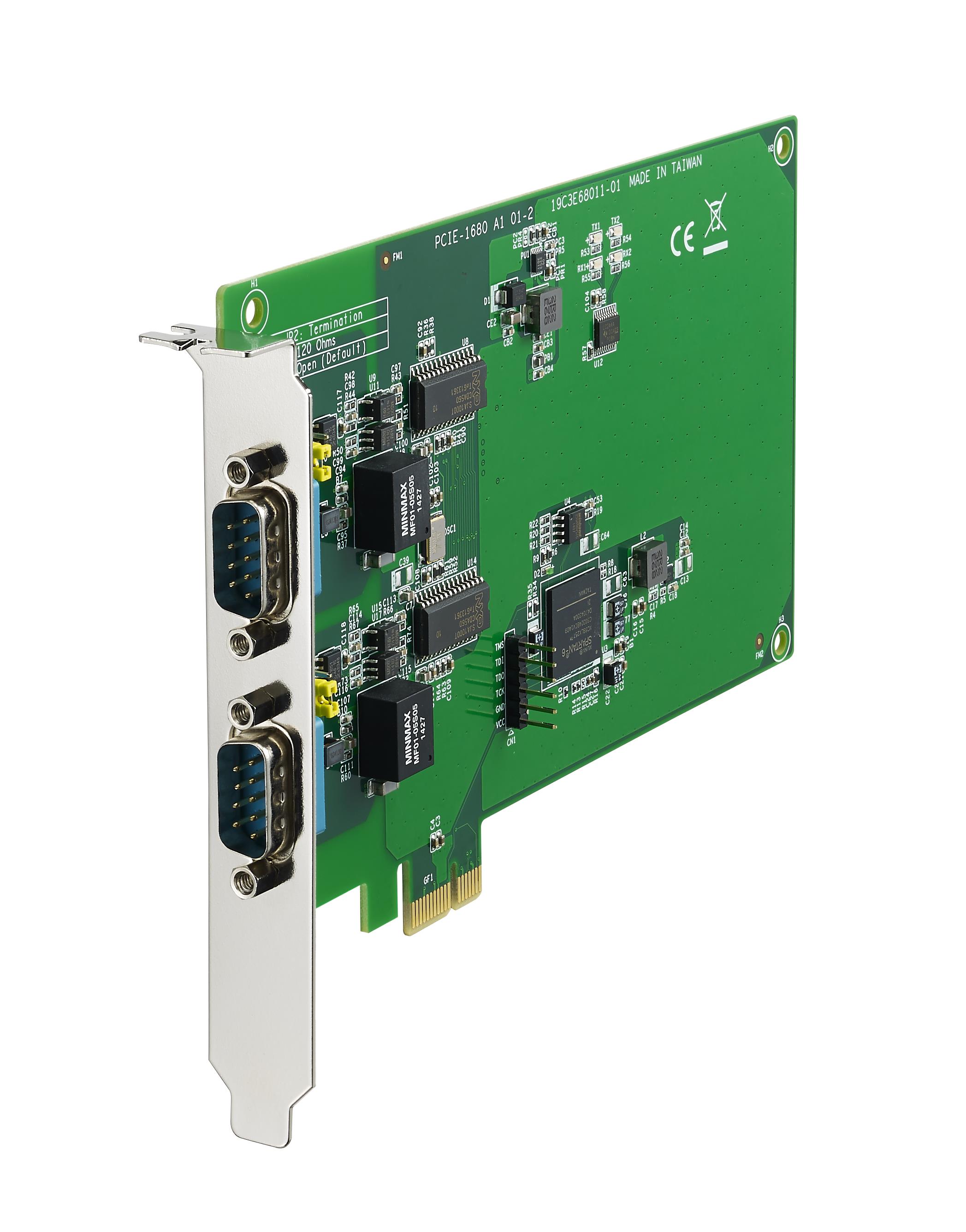

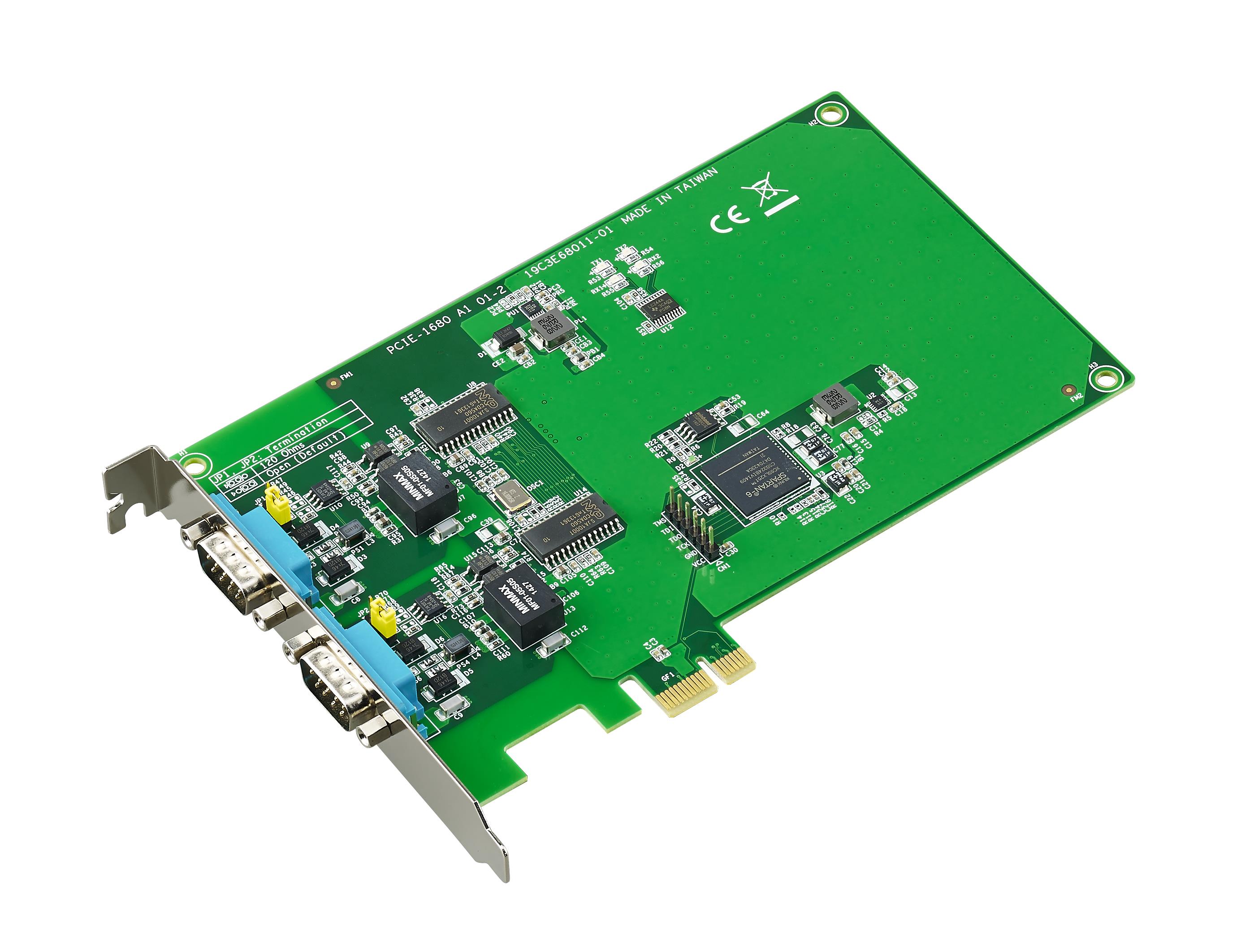

Advantech PCIE-1680-B

2-Port CAN-Bus PCIE card w/ Isolation.

$364.00
Part Number
  • PCIE-1680-B
Highlights...

Features

  • PCIe bus specification 1.2 compliant
  • Operates two separate CAN networks at the same time
  • High speed transmission up to 1 Mbps
  • 16 MHz CAN controller frequency
  • Optical isolation protection of 2,500 VDC ensures system reliability
  • Windows DLL library and examples included
  • Supports Windows CE5/CE6/XP/7/8.1/10 drivers and utilities
  • Supports Linux 2.4.xx / 2.6.xx; Intel x86 hardware platform
The PCIE-1680 is a special purpose communication card that offers connectivity to Controller Area Networks (CAN) on your PC. With its built-in CAN controllers, the PCIE-1680 provides bus arbitration and error detection with an automatic transmission repetition. This drastically reduces the chance of data loss and ensures system reliability.You can run both CAN controllers independently at the same time. The PCIE-1680 operates at baud rates up to 1 Mbps.
