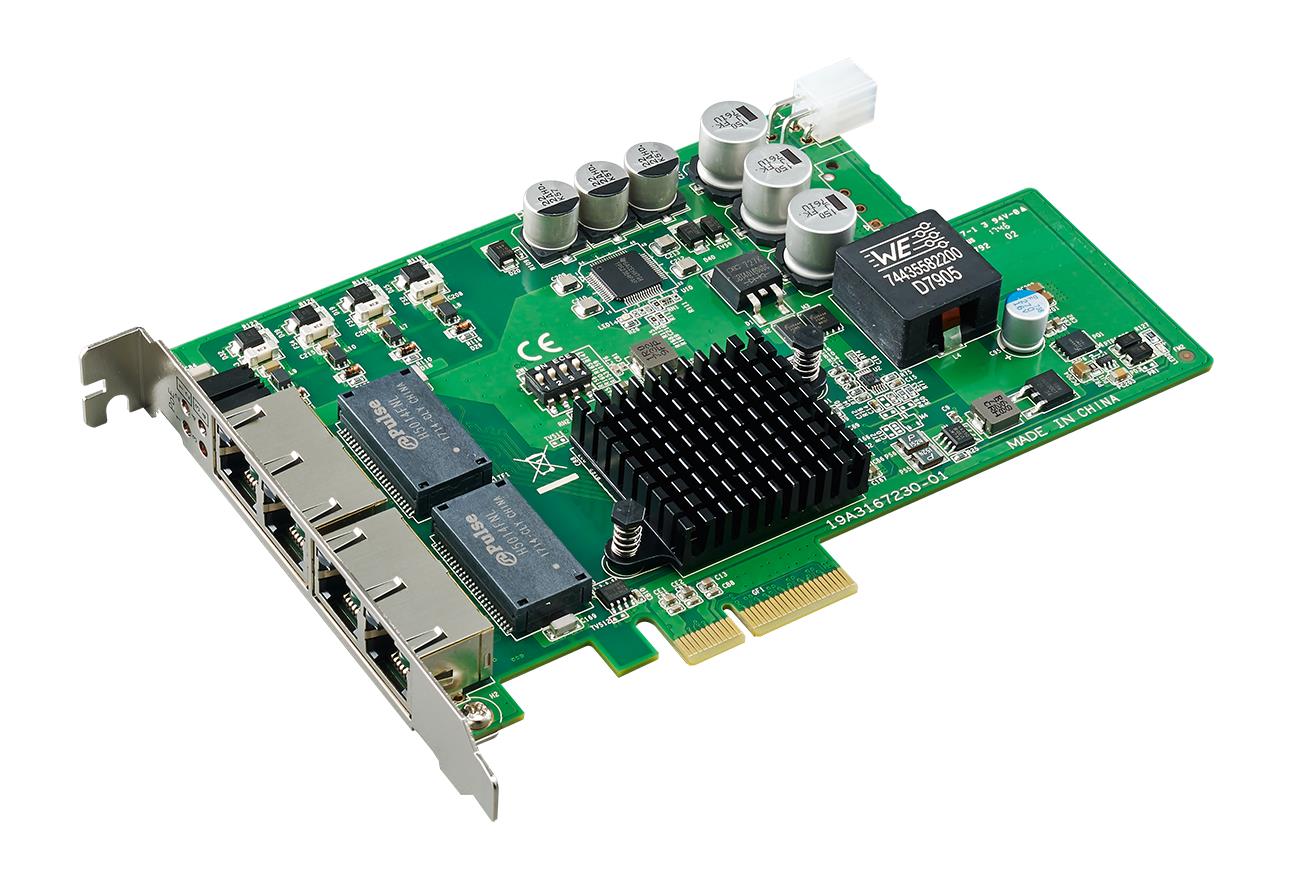

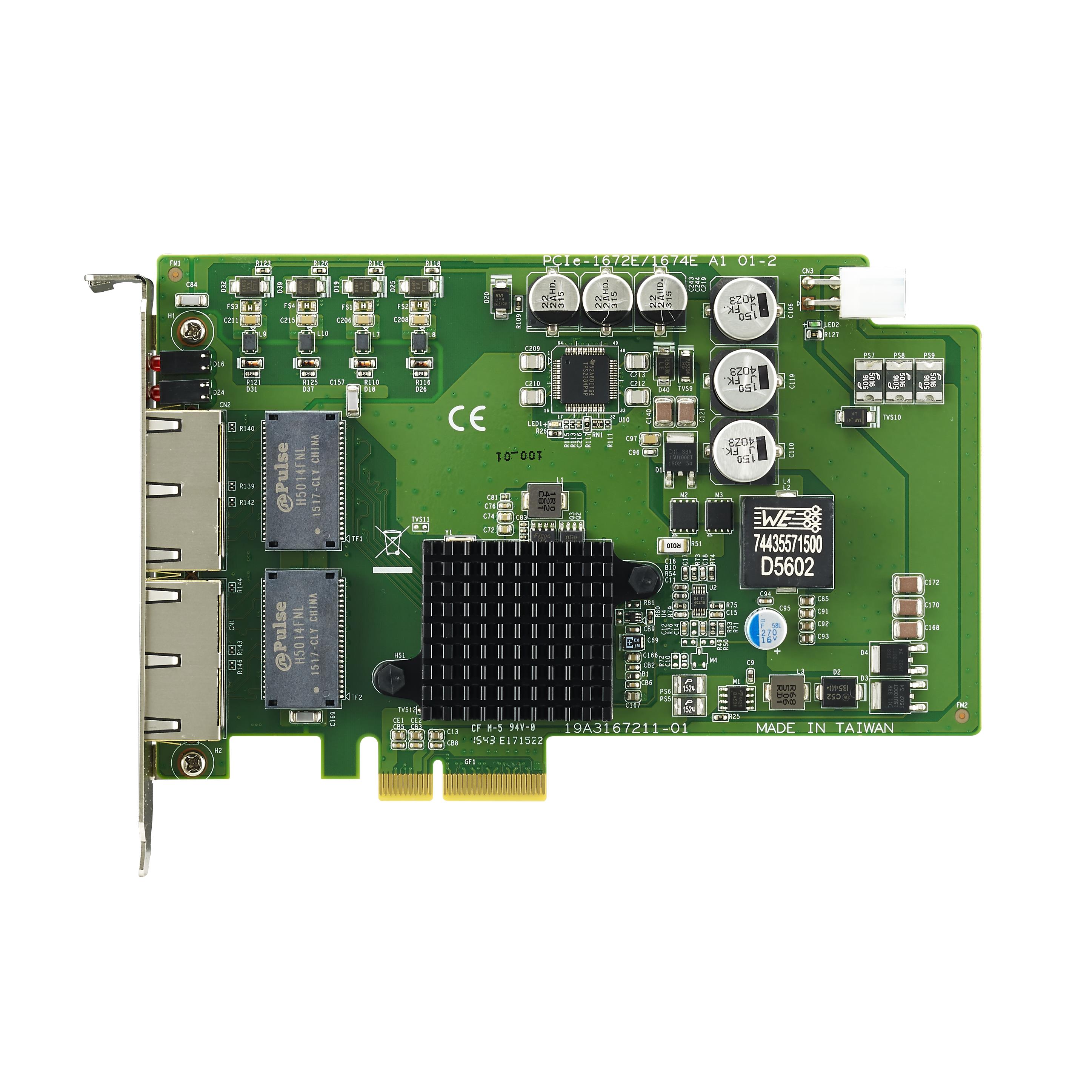

Advantech PCIE-1674V-CE

4-port PCIe programmable power on/off card.

$333.00
Part Number
  • PCIE-1674V-CE
Highlights...

Features

  • Operating Temperature: 0~50 °C (32~122 °F)
  • Speed: 1,000 Mbps
  • Jumbo Frame: 9 KB
  • Port Connector: 8-pin RJ45
  • Input Voltage: 12 VDC
  • Output PoE Power: 48 VDC PoE Power output, 15.4 W per port, total Max. 60 W
  • Intel® server-grade GbE Mac Controller
  • PCI Express® x4 compliant
  • PoE power from PCIe slot(Total Max. 18W)
  • Powered Device (PD) auto detection and classification
  • Supports IEEE 802.3u Auto-Negotiation
  • Supports Jumbo frame (9,500 byte) and link aggregation
  • Supports IEEE-1588 and IEEE-802.1 AS
  • Per port power on/off control (PCIE-1674V)
The PCIE-1672/PCIE-1674 PoE (Power over Ethernet) PCIE series is PCI express Network Interface Card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE) compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672/PCIE-1674 can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports on each module. It allows power to be supplied to connected devices, such as PoE-based GigE cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. The PCIE-1672/PCIE-1674 is ideally designed for scientific research instrumentations, Medical Research Instrumentations, Machine Vision System, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
