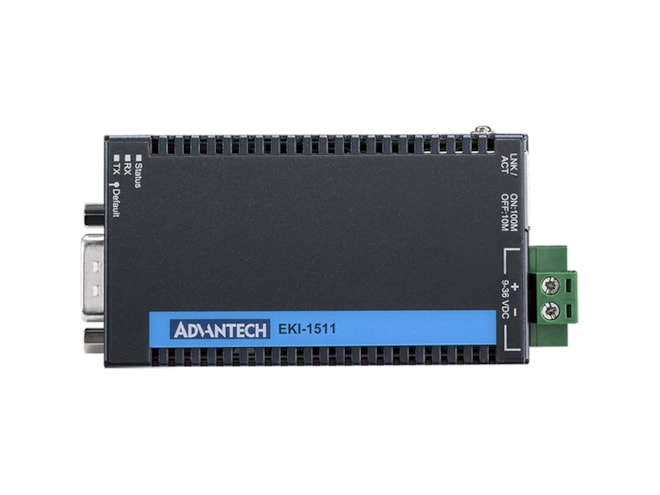

Advantech EKI-1511IL-A

Features

• Serial Standard: RS-232
• EMC: CE, FCC
• EMI: EN 55011/ EN 55022 Class A, EN 61000-6-2, EN 61000-6-4 FCC Part 15 Subpart B Class A
• EMS: EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
• Freefall: IEC 60068-2-32
• Safety: UL 62368
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• RJ-45 Port Connector Type: RJ-45
• Serial Port Connector Type: DB9 male
• Ethernet Standard: IEEE 802.3 , 802.3u
• RJ-45 Transmission Speed: 10/100 Mbps
• Dimensions (W x H x D): 46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.)
• Enclosure (Metal): Metal with solid mounting hardware
• IP Rating: IP30
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Weight: 125 g
• Power Consumption: 1W
• Power Input (DC): 9 ~ 36 VDC
• Ethernet Isolation: Built-in 2.25 k VDC magnetic isolation
• Baud Rate: 300~230.4 kbps
• Configuration: Windows utility, Telnet console, Web Browser
• Operation Mode: COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection
• Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
• Warranty Period: 5 years
• 1 x 10/100 Mbps Ethernet port
• Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
• Baud rate: supports up to 230.4 Kbps
• Maximum of five hosts can access one serial port
• Maximum of 16 hosts accessed in TCP client mode
• Built-in 8-kV ESD protection for all serial signals
• Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
• "I" models support a wide operating temperature
• "L" models support RS-232 only; "X" models support RS-422/485
