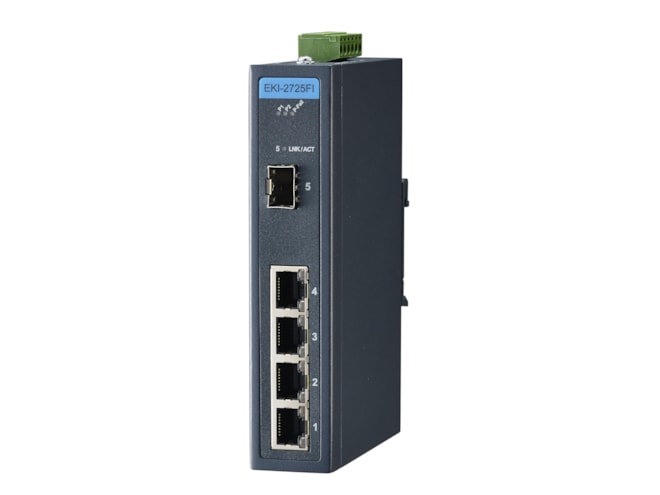

Advantech EKI-2725FI-AE

4+1G port Full Gigabit Unmanaged Ethernet Switch, -40~75℃.

$241.33
Part Number
  • EKI-2725FI-AE
Highlights...

Features

  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL 60950-1
  • Temperature (Max. Operating): 75°C (167°F)
  • Fiber Port Interface: SFP
  • Fiber Port Connector Type: SFP cage
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Transmission Speed: 100/1000 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
  • IP Rating: IP30
  • Weight: 0.45 kg (1.0 lb)
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: Max 2.5W
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 1A @ 24 VDC
  • Redundant Dual Inputs: Yes
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 2K
  • Packet Buffer Size: 1M bit
  • Switch Fabric Speed: 10Gbps
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
  • Supports 10/100/1000 Mbps auto negotiation
  • Supports jumbo frame transmission up to 9kb
  • Provides slim size, DIN-rail with IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay
The EKI-2725F supports Gigabit Ethernet. The power rating is 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725F will automatically get back to a normal operating state. Each port of EKI-2725F has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.
