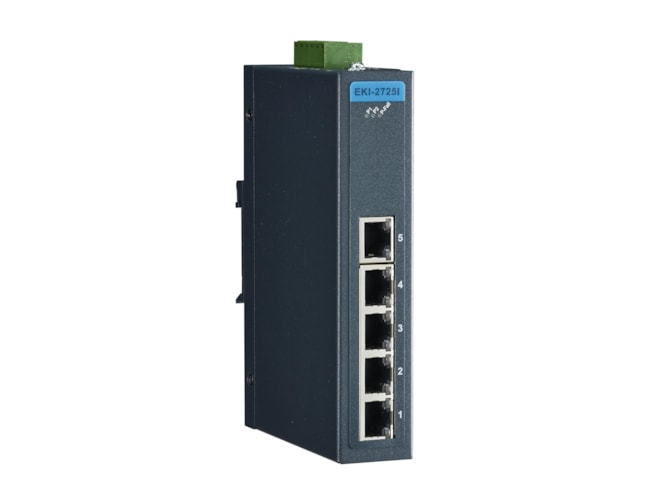

Advantech EKI-2725-CE

5 port Full Gigabit Unmanaged Ethernet Switch.

$160.00
Part Number
  • EKI-2725-CE
Highlights...

Features

  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
  • Safety: UL 60950-1
  • Temperature (Max. Operating): 60°C (140°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal
  • Power Consumption: Max 2.5W
  • Power Input (DC): 12 ~ 48 VDC
  • Redundant Dual Inputs: Yes
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100/1000Mbps Auto Negotiation
  • Supports jumbo frame transmission up to 9kbytes
  • Provides Slim size, DIN-rail with IP30 metal mechanism
  • Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
The EKI-2725/2728 supports Gigabit Ethernet. The 12 ~ 48 power features a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable. Each port of EKI-2725 has 2 LED’s to show the link status transmission speed, collision status and notify of power failure.
