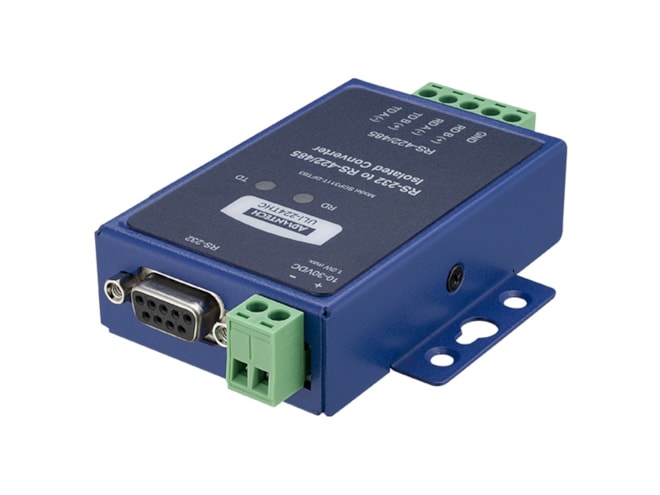

Advantech BB-SCP311T-DFTB3

ULI-224THC - RS-232 to Isolated. RS-422/485 Converter, Isolated.

$181.00
Part Number
  • BB-SCP311T-DFTB3
Highlights...

Features

  • Technology: Serial
  • Serial Converter: RS-232 to RS-422/485
  • Mounting: Panel
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • Power: 10-30VDC
  • Maximum Serial Transmission Speed: 460.8 Kbps
  • Isolation: 2kV
  • ESD Protection: 4 kV (Contact) ; 8 kV (Air)
  • Isolation: 2,000 VDC
  • Surge Protection: 1 KV
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: Panel, DIN
  • Enclosure (Metal): Metal
  • Convert RS-232 data signals to RS-422/485
  • 2 kV optical isolation on input/output; ESD protection (8kV contact, 15kV air)
  • Data rate: up to 460.8 kbps (bit-wise enable)
  • Rugged metal panel mount case (DIN rail adapters sold separately)
  • 10-30 VDC external power source (not included, sold separately)
  • UL Listed
A compact and rugged serial converter, designed and tested to meet heavy industrial EMC standards. The RS-232 is connected through a female DB9 connector. The RS-422/485 signal is connected through a removable terminal block. Power through a two-position, removable terminal block.
