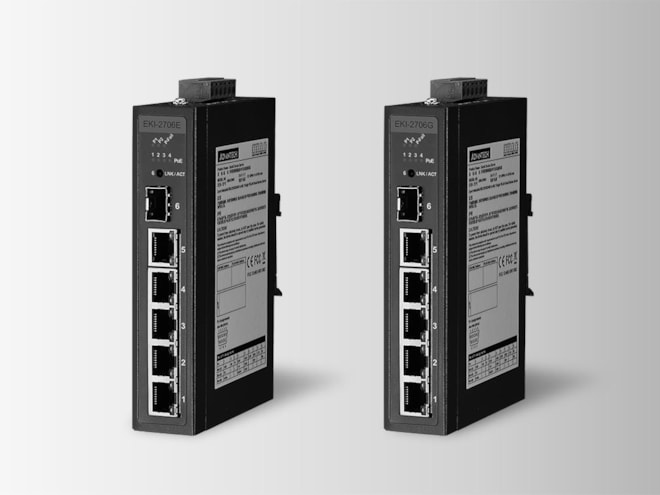

Advantech EKI-2706G-1GFPI-BU

Features

• RJ-45 Port Connector Type: 5 x RJ-45 + 1 x SFP ports
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Power Input (DC): 24 ~ 48 VDC
• Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
• RJ-45 Transmission Distance: 100 m
• Fiber Transmission Distance: Up to 110 km
• MAC Table Size: 2K
• Packet Buffer Size: 1M bit
• Switch Fabric Speed: 12Gbps
• Jumbo Frame: 9,216 bytes
• Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
• IP Rating: IP30
• Enclosure (Metal): Metal
• Weight: 0.45 kg (1.0 lb)
• Mounting: DIN-rail, Wall
• Relative Humidity: 10~95%
• Time: 1,697,086 hours
• Method: Telcordia(Relax), GB
• Power Consumption: Max 2W
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• EMI: CE, FCC Class A
• Safety: UL 62368
• EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
• Warranty Period: 5 years
• Place of production: Taiwan
• Supports 10/100/1000 Mbps Auto Negotiation (EKI-2706G)
• Supports jumbo frame transmission up to 9 kbytes
• DIN-rail with IP30 metal mechanism
• Redundant 24~48 VDC power input(BE Version)
• 4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper + 1 Gigabit SFP ports
