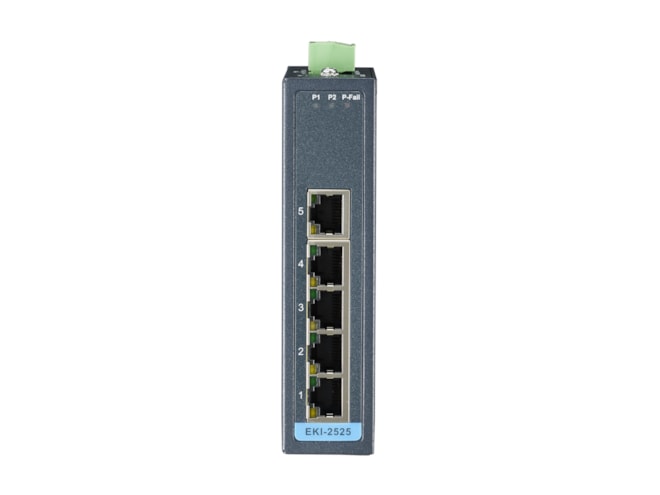

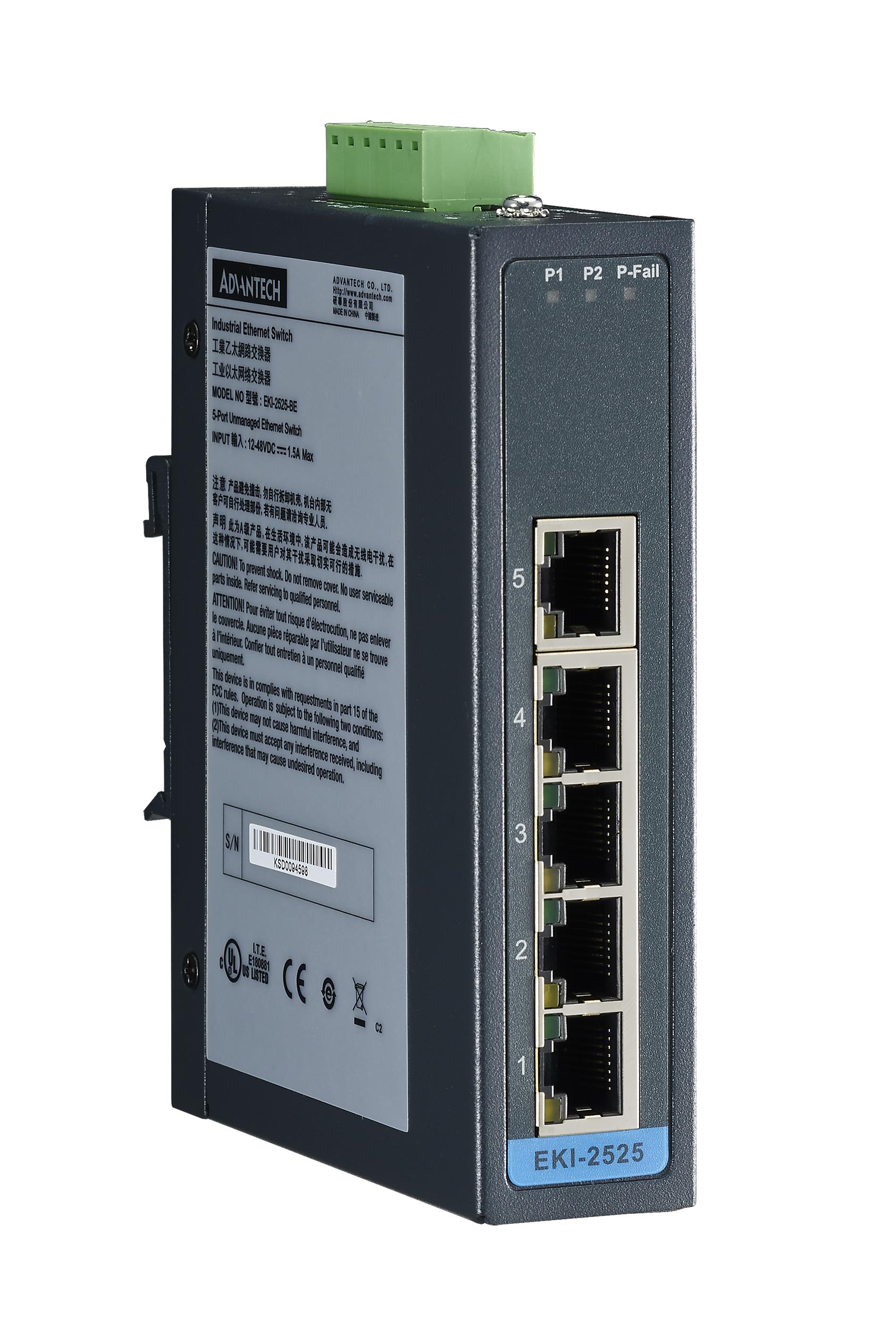

Advantech EKI-2525-BE

5 10/100Mbps Unmanaged Ethernet Switch.

$91.00
Part Number
  • EKI-2525-BE
Highlights...

Features

  • Mounting: DIN, Panel
  • Power: 12-48VDC
  • Technology: Ethernet
  • Unmanaged: Yes
  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
  • Safety: UL 60950-1
  • Temperature (Max. Operating): 60°C (140°F)
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 30 x 120 x 95 mm (1.18 x 4.72 x 3.74 in.)
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal
  • Power Consumption: 2.88W
  • Power Input (DC): 12 ~ 48 VDC
  • Redundant Dual Inputs: Yes
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay
The EKI-2525/2528 supports a Fast Ethernet solution. The 12 ~ 48 power features a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resettable. Each port of EKI-2525/2528 has 2 LED’s, displaying link status transmission speed, collision status and of power failure.
