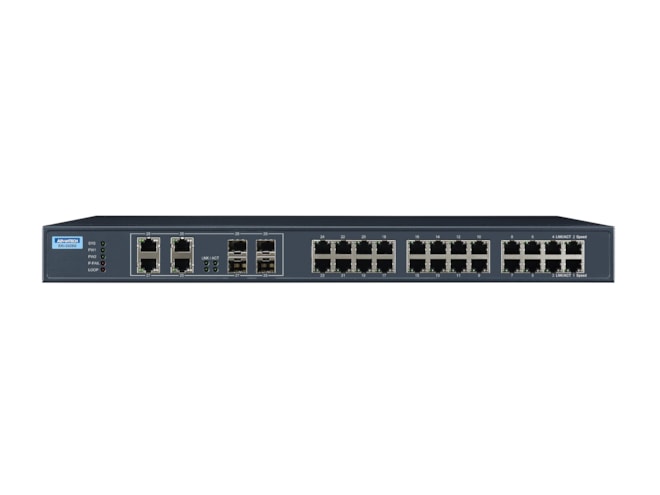

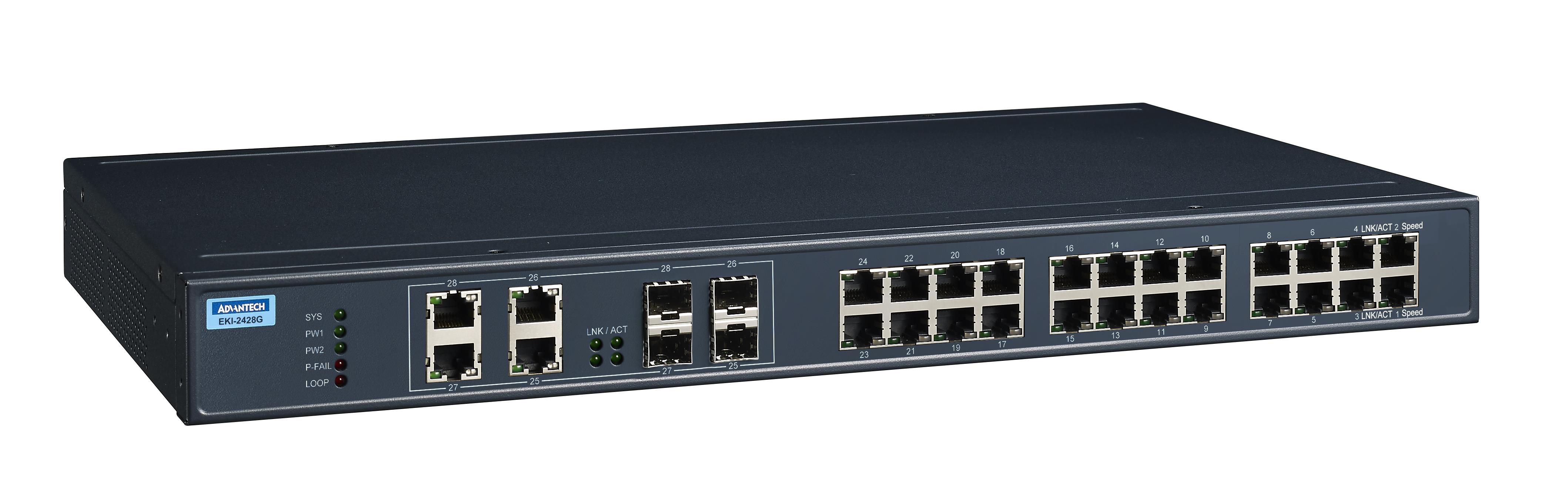

Advantech EKI-2428G-4CI-AE

Features

• EMI: CE, FCC, EN55022 Class A
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Safety: UL 61010-2-201
• Temperature (Max. Operating): 70°C (158°F)
• Fiber Port Number: 4 (combo)
• Fiber Port Interface: SFP
• Fiber Port Connector Type: SFP cage
• Fiber Transmission Distance: Up to 110 km
• Fiber Transmission Speed: 10/100/1000 Mbps
• RJ-45 Port Number: 24 + 4 (combo)
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Mounting (Rack Mount): Yes
• Dimensions (W x H x D): 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
• IP Rating: IP30
• Weight: 3.8 kg
• Support PoE: No
• Power Connector Type: 4-pin removable screw terminal (power & relay)
• Power Consumption: 20W (system)
• Power Input (DC): 12 ~ 48 VDC (8.4 ~ 52.8 VDC) redundant dual inputs
• Power Operating Current: 0.83A @ 24 V
• Jumbo Frame: 9,216 bytes
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 56Gbps
• Warranty Period: 5 years
• Overload Current: Present
• Reverse Polarity: Present
• 24 x Gigabit ports + 4 x Gigabit copper/SFP combo ports
• SFP socket for Easy and Flexible Fiber Expansion
• Provides 8K MAC address
• Supports 12-48V DC power input
• ƒ -40 ~ 70°C wide-range operating temperature
