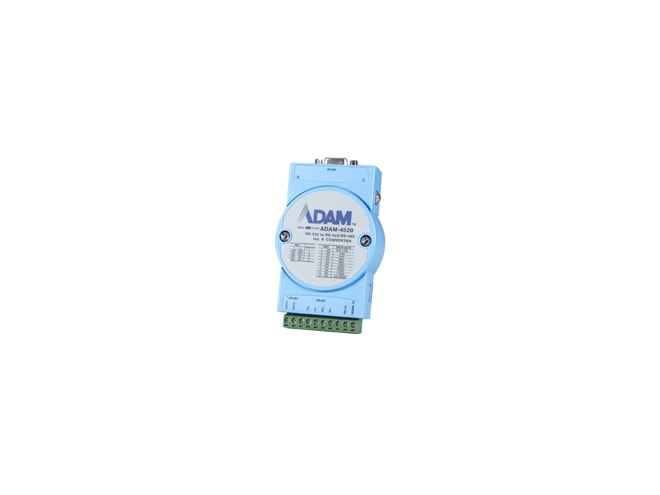

Advantech ADAM-4520-F

Isolated RS-232 to RS-422/485 Converter.

$112.40
Part Number
  • ADAM-4520-F
Highlights...

Features

  • Isolation Voltage: 3,000 VDC
  • Connectors: 1 x DB9 female connector, 1 x 10-pin plug-in screw terminal
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 1200 bps~115.2 kbps
  • Converter/Repeater: RS-232 to RS-422/485
  • Automatic RS-485 data flow control
  • 3000 VDC isolation protection
  • Surge protection RS-485 data line
  • Transmission speed up to 115.2 Kbps
  • LED indicator to monitor status
This converter lets you take advantage of RS-422 and RS-485 on systems originally equipped with RS-232. It transparently converts RS-232 signals into isolated RS-422 or RS-485 signals. You do not need to change your PC’s hardware or your software. Extends communication distance by 4000 ft.
