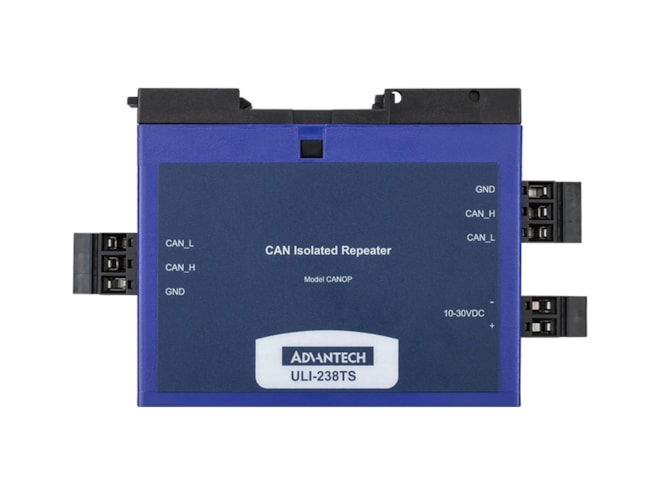

Advantech BB-CANOP

ULI-238TS - CAN Optical Isolator / Repeater. Terminal Block Connnectors.

$187.00
Part Number
  • BB-CANOP
Highlights...

Features

  • Technology: Serial
  • Serial Standard: CAN
  • Maximum Serial Transmission Speed: 250 Kbps
  • Serial Port Connector Type: Terminal block
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • Isolation: 2,000 VDC
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: Inline
  • Boost signals and increase node capacity of CAN networks
  • Works with various CAN protocols and frame lengths
  • 2,000V optical isolation protection from surges and spikes
  • Data rate: up to 250 kbps (bit-wise enable)
  • Terminal block CAN connections (copper)
  • DIN rail mount enclosure - ideal for industrial cabinets
  • 10-30 VDC external power required (not included, sold separately)
Increases the node capacity of Control Area Network systems while protecting CAN networks from component destroying surges and transients. Networks that are not properly terminated may experience data errors or miss data completely. The BB-CANOP creates two new ends to the CAN network. 10-30 VDC.
