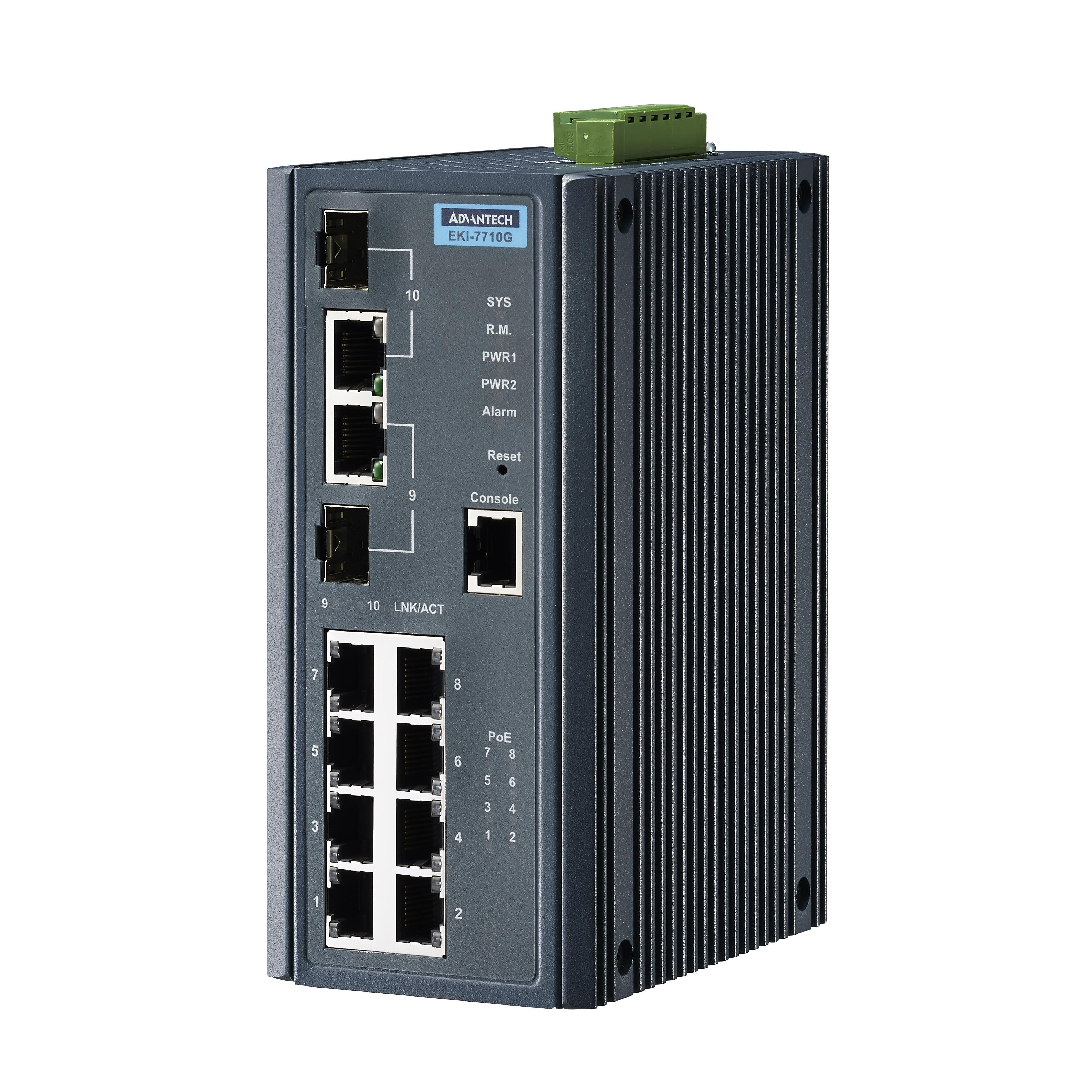

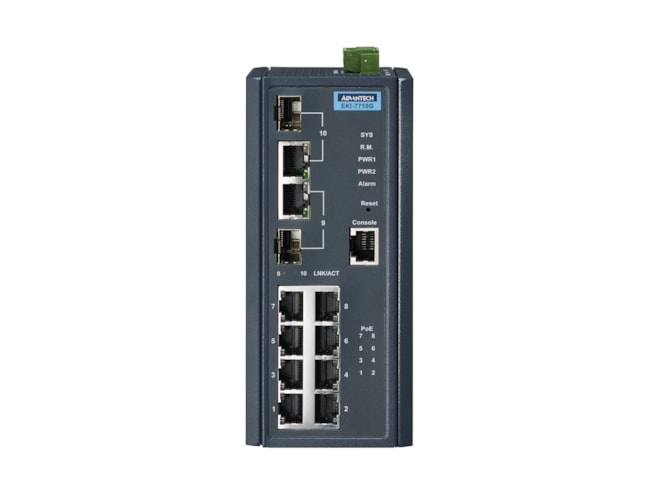

Advantech EKI-7710G-2CPI-BE

8G + 2G Combo Managed POE+ switch w/Wide temp.

Call for pricing
Part Number
  • EKI-7710G-2CPI-BE
Highlights...

Features

  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit Copper/SFP combo ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • Dual 24~48 V DC power input and 1 relay output
The EKI-7710G series support Network Management System, eight Gigabit Power over Ethernet (PoE) and two Gigabit combo ports. It provides up to 30 watts per port to fulfill the Power Device. It’s embedded with IXM function, providing fast deployment and saving time and costs.
