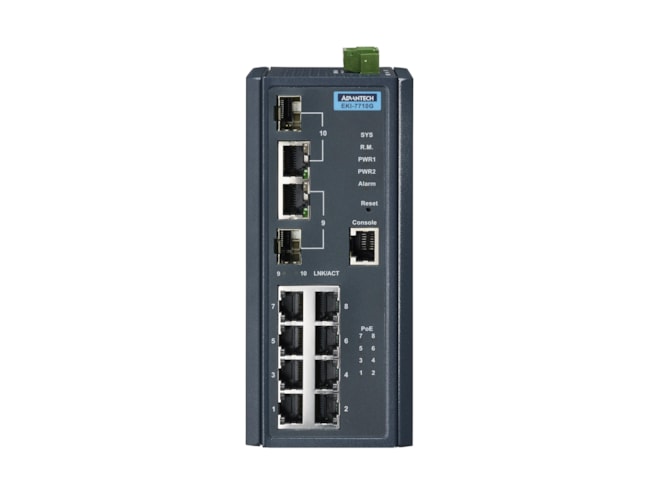

Advantech EKI-7710G-2CPI-AU

Features

• RJ-45 Port Connector Type: 8 x RJ-45 + 2 x RJ-45/SFP combo ports
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Power Input (DC): 24 ~ 48 VDC
• Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
• RJ-45 Transmission Distance: 100 m
• Fiber Transmission Distance: Up to 110 km
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 20Gbps
• Jumbo Frame: 9,216 bytes
• Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
• IP Rating: IP30
• Enclosure (Metal): Metal
• Weight: 1.2 kg
• Mounting: DIN-rail, Wall
• Relative Humidity: 10~95%
• Time: 858,835 hours
• Method: Telcordia(Relax), GB
• Power Operating Current: 0.25A @ 48VDC (system)
• Power Consumption: 12.1W (system)
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• EMI: CE, FCC Class A
• Safety: UL 508
• EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Vibration: IEC 60068-2-6
• Warranty Period: 5 years
• Place of production: Taiwan
• 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit Copper/SFP combo ports
• SFP socket for Easy and Flexible Fiber Expansion
• Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
• IXM function enables fast deployment
• Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
• Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
• Dual 24~48 V DC power input and 1 relay output
