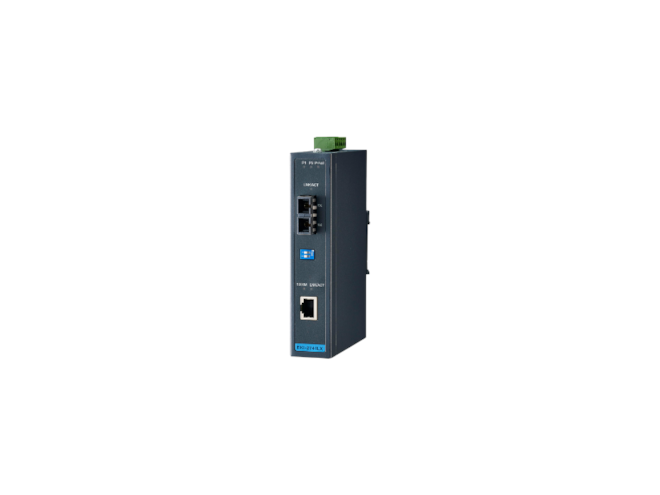

Advantech EKI-2741LX-BE

Media Converter, 1000Mbps, Single mode 1310nm, 10km, SC.

$546.96
Part Number
  • EKI-2741LX-BE
Highlights...

Features

  • RJ-45 Transmission Distance: Up to 100 m
  • RJ-45 Transmission Speed: 1000 Mbps
  • Power Input (DC): 12 ~ 48 VDC, redundant dual inputs
  • RJ-45 Port Connector Type: 1 x RJ-45 and 1 x SC type fiber connector
  • Optical Wavelength: 1550T / 1310R
  • Optical Mode: Single-strand
  • Max. Distance Range: 2km ~ 20km
  • Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
  • Provides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type connector for 1000Base-SX/LX device
  • Provides DIP switch for full/half duplex setting
  • Supports MDI/MDI-X auto crossover
  • Supports Auto-Negotiation
  • Supports redundant 12 ~ 48 VDC power input
  • Provides flexible mounting: DIN-rail and Wall mount
  • Provides Link Fault Pass-through (LFP)
  • Jumbo Frame: 9K bytes
EKI-2741 is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet signals to optic signals. Therefore, EKI-2741 is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2741 supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2741 accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. EKI-2741 is an enhanced gigabit Ethernet to fiber optic converter. Aside from its standard features, the versatile EKI-2741 also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. EKI-2741 will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
