Advantech FPM-3191G-R3BE

19" SXGA Industrial Monitor with Resistive Touch Control, Direct VGA, and DVI Ports.

$1,698.00
Part Number
  • FPM-3191G-R3BE
Highlights...

Features

  • Ingress Protection: Front Panel IP65
  • Storage Humidity: 10~95% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star
  • OS Support: Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: Phoenix Jack: 24 VDC, DC Jack: 12 VDC
  • Video Port: VGA, DVI-D
  • Power Connector: 1 x Phoenix Jack
  • Display Size: 19"
  • Max. Resolution: 1280 x 1024
  • Viewing Angle (H/V°): 170/160
  • Dimension (W x H x D): 482 x 399.2 x 67 mm
  • Enclosure: Aluminum with hard anodizing coating, Stainless steel with
  • ground isolation protection
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 10.65 kg (23.46 lb)
  • Touch Type: 5-wire resistive
  • 19" SXGA TFT LCD with LED backlight
  • Robust design with stainless steel chassis and aluminum front panel
  • Anti-glare screen with tempered glass and IP65-certified front panel
  • Lockable OSD control pad on rear cover
  • Supports 24 VDC power input
  • Supports panel, wall, desktop, rack, or VESA arm mounting
  • Supports 9U pre-drilled rackmount mounting holes

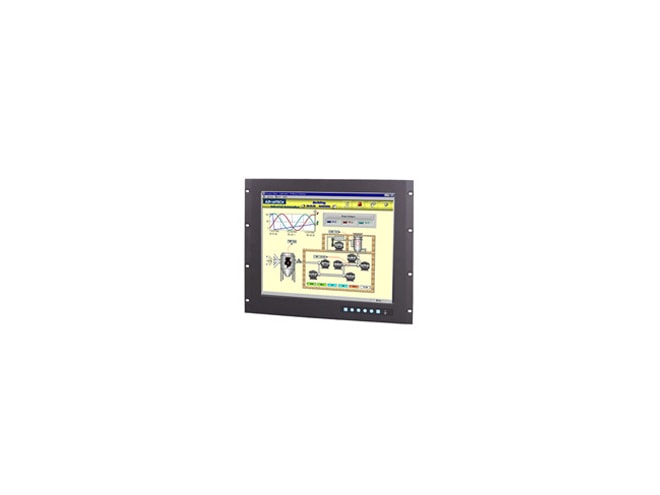

FPM-3191G is a 19' color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 19", it presents an simple display area as well as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the existing system. The onscreen display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel IP65 compliance.
