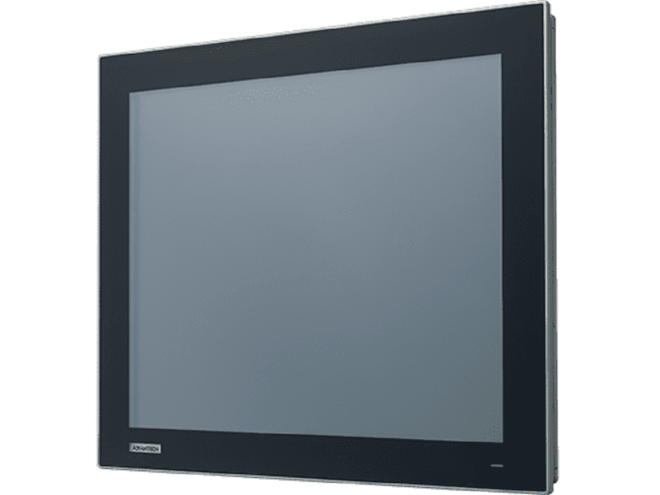

Advantech FPM-217-R9AE

17" SXGA Ind. Monitor,w/Resistive TS(24Vdc).

$875.00
Part Number
  • FPM-217-R9AE
Highlights...

Features

  • Ingress Protection: Front Panel IP66
  • Operating Temperature: 0~50 °C (32~122 °F)
  • Storage Humidity: 10~95% RH (non-condensing)
  • Vibration Protection: 1 Grms, random
  • Certification: CB, UL, CE, FCC Class A, CCC, BSMI
  • OS Support: Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
  • Power Input: 24 VDC
  • Video Port: HDMI, DP, VGA
  • Power Connector: 1 x Lockable DC Jack
  • Display Size: 17"
  • Max. Resolution: 1280 x 1024
  • Viewing Angle (H/V°): 170/160
  • Dimension (W x H x D): 410.4 x 343.4 x 54 mm
  • Enclosure: Die cast magnesium alloy, Die-casting aluminum
  • Mounting: Stand, Wall, VESA, Panel
  • Weight (Net): 5.4 kg (11.90 lb)
  • Touch Type: 5-wire resistive
  • 17" SXGA TFT LED LCD with 50,000 backlight lifetime
  • Direct HDMI, DP and VGA input interfaces
  • Anti-glare screen with tempered glass
  • Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  • Lockable I/O connectors
  • Slim design enables easy installation
  • Supports various mount options: panel, desktop, and VESA arm
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen.
