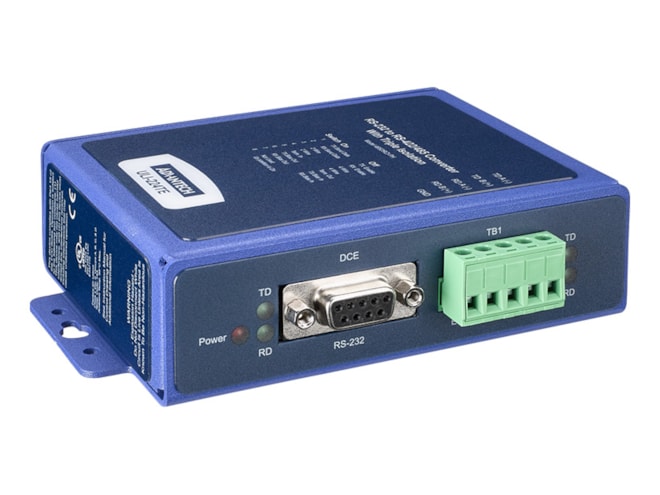

Advantech BB-485DRCI-PH

ULI-224TE - Serial Converter, RS-232 (DB9) to RS-422/485 (TB) , Isolated, Ind., DIN Mount, C1D2.

$308.00
Part Number
  • BB-485DRCI-PH
Highlights...

Features

  • Technology: Serial
  • Serial Converter: RS-232 to RS-422/485
  • Mounting: Panel
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • Power: 10-48VDC
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Isolation: 2kV
  • Power and Data Isolated: Yes
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Substation: IEC-61850-3
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: Panel, DIN
  • Enclosure (Metal): Metal
  • Safety: Class I, Division 2, UL 508
  • Converts RS-232 data signals to RS-422/RS-485
  • Three-way 2 KV optical isolation (input, output, power)
  • Wide operating temperature: -40 to +85 °C
  • Modbus ASCII/RTU
  • Rugged IP30 metal panel mount case, DB9 F / TB
  • 10-48 Vdc input power (external power supply required, sold separately)
  • UL C1/D2, IEEE-61850-3, IEEE-1613
Our premium heavy industrial RS-232 to RS-422/485 isolated converter. Powerful isolation on both data ports protects equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection. An external power supply is required.
