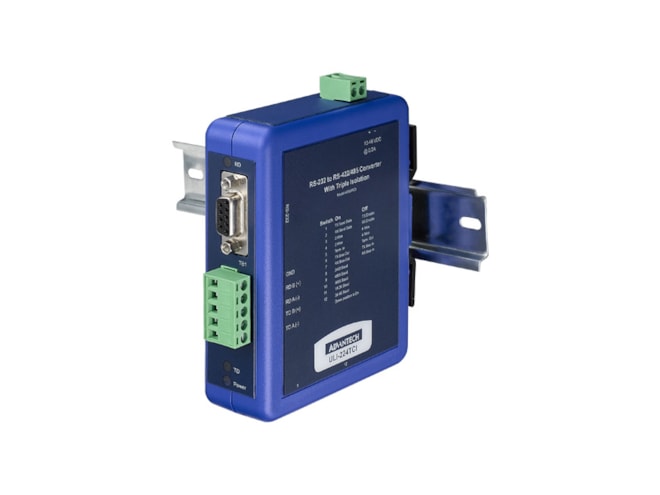

Advantech BB-485DRCI

ULI-224TCI - 3-Way Isolated. RS-232 to RS-422/485 Converter, Industrial, C1D2.

$237.30
Part Number
  • BB-485DRCI
Highlights...

Features

  • Technology: Serial
  • Serial Converter: RS-232 to RS-422/485
  • Mounting: DIN
  • Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block
  • Power: 10-48VDC
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Isolation: 2kV
  • Power and Data Isolated: Yes
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Safety: UL C1/D2 (Class I, Division 2)
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: DIN
  • Converts RS-232 to RS-422/485 Converter (DB9f / TB)
  • 3-way 2 KV optical isolation (input, output, power)
  • Data rates up to 115.2 kbps
  • Wide operating temperature: -40 to +80 °C
  • Modbus ASCII/RTU, Allen-Bradley® DH-485 compatible
  • DIN rail mount, DB9 F / TB
Converts RS-232 to RS-422 for greater range or to RS-485 for greater range and multi-drop. RS-422/485 line surge suppression. DIP switch configuration. Automatic Send Data Control â€" no software control of handshake signals in RS-485 mode. Removable TBs for power and RS-422/485 signals.
