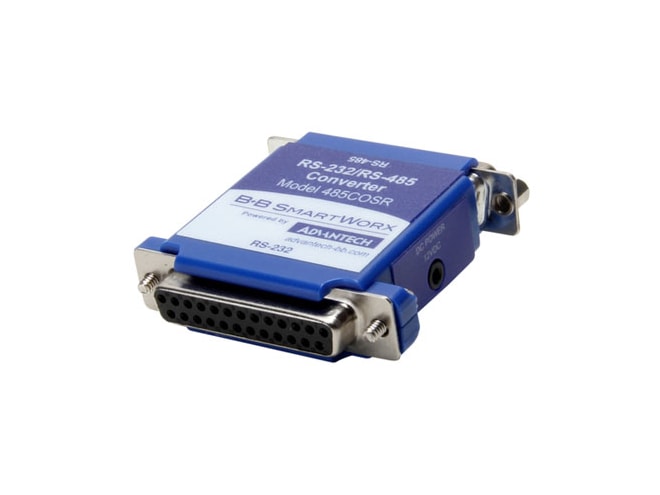

Advantech BB-485COSR

Serial Converter, RS-233 DB25 F to RS-485 DB25 M.

$94.00
Part Number
  • BB-485COSR
Highlights...

Features

  • Technology: Serial
  • Mounting: Inline
  • Power: 12VDC
  • Temperature: 0 to 70C
  • Serial Type: RS-422/485
  • Converts RS-232 TD and RD to balanced RS-485
  • Extend RS-232 data signals up to 1.2 km (4000 ft)
  • Data rate: up to 115.2 Kbps baud
  • 12 Vdc power supply required (not included, sold separately)
  • DB25 F / DB25 M
RS-232 to Rs-485 converter, converts unbalanced, full-duplex RS-232 signals to balanced full-duplex or half-duplex RS-485 signals. RS-232 female DB25S connector and RS-485 male DB25P connector. No special software required since the RS-485 is enabled by the first transition on the RS-232 side.
