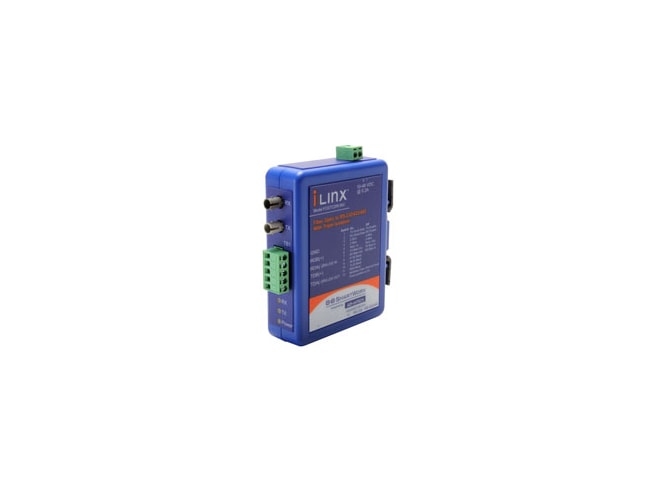

Advantech BB-FOSTCDRI-INV

Serial to Fiber Converter, RS-232/422/485 TB to MM Fiber ST (Inverted), Ind. DIN, C1D2.

$348.00
Part Number
  • BB-FOSTCDRI-INV
Highlights...

Features

  • Technology: Serial
  • Mounting: DIN
  • Power: 10-48VDC
  • Serial Type: RS-232/422/485
  • Serial Connector: Terminal Block
  • Fiber Type: Multi-mode
  • Converts serial data signals to multi-mode ST fiber optic
  • Inverted fiber state - fiber light OFF in idle state
  • 2 KV 3-way optical isolation (input/output/power); EMI/RFI protection
  • Data rate: up to 115.2 kbps
  • Wide operating temperature: -40 to +80 °C
  • DIN mount, IP20 plastic case
  • UL Class 1 / Division 2 rated
A premium industrial serial to multi-mode fiber optic converter. It extends data communications up to 4 km. Multi-drop mode capable. In RS-232, supports Transmit and Receive data. An Automatic Send Data Control circuit controls the RS-422/485 driver chip, eliminating the need for external software.
