Advantech BB-FOSTCDRI

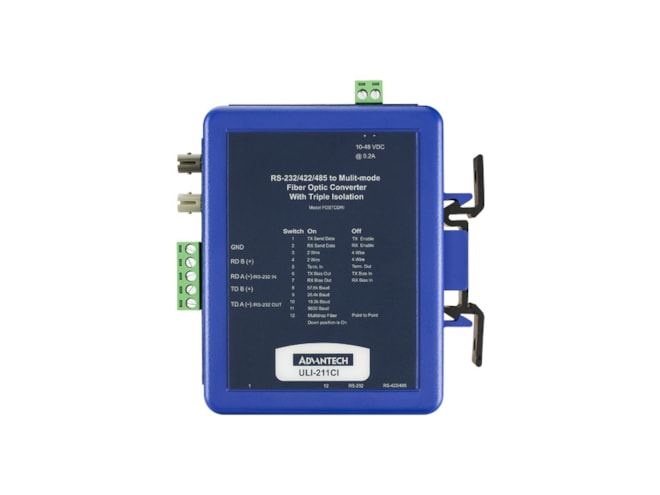

ULI-211CI -Triple Isolated RS-232/422/485 (TB) to Multi-mode Fiber Converter (ST ).

Call for pricing
Part Number
  • BB-FOSTCDRI
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232 / RS-422 / RS-485
  • Mounting: DIN
  • Serial Port Connector Type: Terminal block
  • Power: 10-48VDC
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Optical Mode: Multi-mode
  • Serial Type: RS-232/422/485
  • Max. Distance: 4 km
  • Serial Connector: Terminal Block
  • Optical Connector: ST
  • Fiber Type: Multi-mode
  • Optical Wavelength: 820 nm
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Safety: UL C1/D2 (Class I, Division 2)
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: DIN
  • Converts serial data signals to multi-mode ST fiber optic
  • 2 KV 3-way optical isolation (input/output/power); EMI/RFI protection
  • Data rate: up to 115.2 kbps
  • Wide operating temperature: -40 to +80 °C
  • DIN mount, IP20 plastic case
  • UL Class 1 / Division 2
A premium industrial serial to multi-mode fiber optic converter. Extends data communications up to 4 km. It provides three-way optical isolation on the input, output and power lines and multi-drop mode. In RS-232 mode supports Transmit and Receive data. A 10-30 VDC external power source is required.
