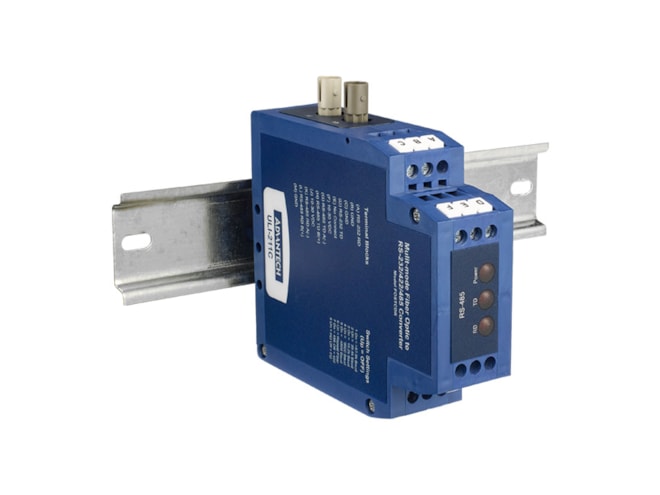

Advantech BB-FOSTCDR

ULI-211C Serial Converter, RS-232 TB to MM Fiber ST, Ind. DIN.

$320.30
Part Number
  • BB-FOSTCDR
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232 / RS-422 / RS-485
  • Mounting: DIN
  • Serial Port Connector Type: Terminal block
  • Power: 10-30VDC
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Optical Mode: Multi-mode
  • Serial Type: RS-232/422/485
  • Max. Distance: 4 km
  • Serial Connector: Terminal Block
  • Optical Connector: ST
  • Fiber Type: Multi-mode
  • Optical Wavelength: 820 nm
  • Isolation: 2,000 VDC
  • Power Input (DC): 10 ~ 30 VDC
  • Mounting: DIN
  • Converts serial data signals to multi-mode fiber
  • 2 KV, 2-way isolation; EMI/RFI protection
  • Data rate: up to 115.2 kbps
  • Wide operating temperature: -40 to +80 °C
  • DIN rail mount
  • 10-30 VDC power source required (not included, sold separately)
Serial to multimode optic converter, suitable for standard industrial installations. Extends data communications up to 4 km and provides two-way optical isolation on the input and output lines. Multi-drop mode capable In RS-232 mode, supports Transmit and Receive data. 10-30 VDC external power.
