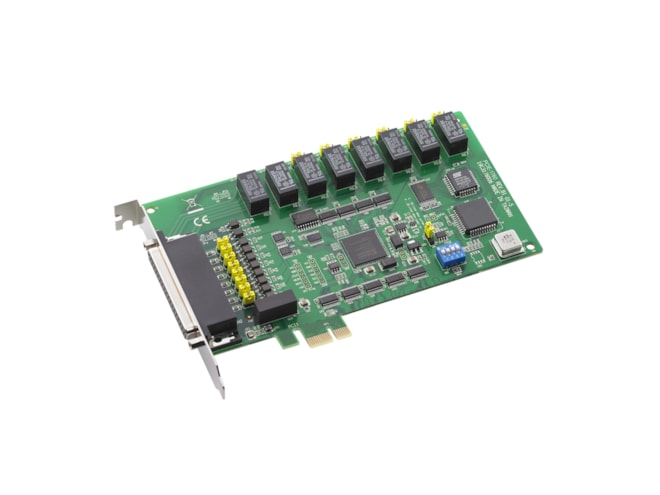

Advantech PCIE-1760-B

8-ch Relay & 8-ch IDI Universal PCIE Card.

$206.00
Part Number
  • PCIE-1760-B
Highlights...

Features

  • Counting Range: 32-bit
  • Channels: 8 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Channels: 2 Form C, 6 Form A
  • Contact Rating (Resistive): 1 A @ 30 VDC, 0.5 A @ 125 VAC
  • 8 opto-isolated digital input channels with counter/timer function
  • 8 relay actuator output channels
  • 2 opto-isolated PWM outputs
  • Programmable digital filter function for DI
  • Jumper selectable dry contact/wet contact input signals
  • Up event counters for DI
  • LED indicators to show activated relays
  • Pattern match interrupt function for DI
  • Change of state interrupt function for DI
  • BoardID switch
PCIE-1760 relay actuator and isolated digital input card is a PC add-on card for the PCI Express bus. It meets the PCI Express standard Rev. 1.0. It provides 8 opto-isolated digital inputs with isolation protection of 2,500 VDC for collecting digital inputs in noisy environments, 8 relay actuators that can be used as a on/off control devices or small power switches, and 2 isolated PWM (Pulse Width Modulation) outputs for custom applications. For easy monitoring, each relay is equipped with one red LED to show its on/off status. Each isolated input supports both dry contact and wet contact so that it can easily interface with other devices when no voltage is present in the external circuit.
