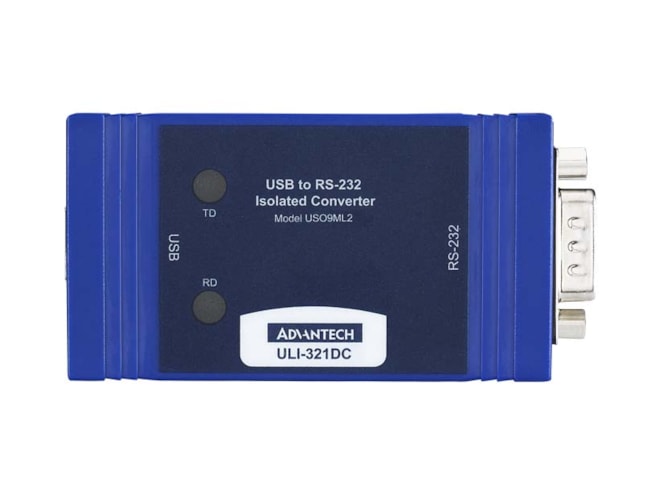

Advantech BB-USO9ML2-A

ULI-321DC - USB 2.0 to RS-232 Converter, DB9 Male. Isolated.

$153.30
Part Number
  • BB-USO9ML2-A
Highlights...

Features

  • Isolation: 2,000 VDC
  • Operating Temperature: 0 ~ 70°C (32 ~ 158°F)
  • ESD Protection: 4 kV (Contact) ; 8 kV (Air)
  • Standard: USB 2.0
  • Maximum Transfer Rate: Full-Speed (12 Mbps)
  • Connector Type: Type B (Female) High Retention
  • Serial Standard: RS-232
  • Serial Port Connector Type: DB9 male
  • Maximum Serial Transmission Speed: 460.8 Kbps
  • Power Input (USB): Port-Powered from USB host (5 VDC)
  • Mounting: Inline
  • USB to RS-232 Converter
  • 2 kV Isolation
  • USB Port Powered
  • High Retention USB Connector
  • 460.8 kbps Serial Data Rate
  • USB Cable Included
Supports serial USB 2.0 to RS-232 Adapter. Easy to set up with a DB9 M on the RS-232 side and a high retention USB connector that works with a standard USB cable (included). 460.8 kbps Serial Data Rate. LEDs indicate transmit and receive. USB Port Powered.
