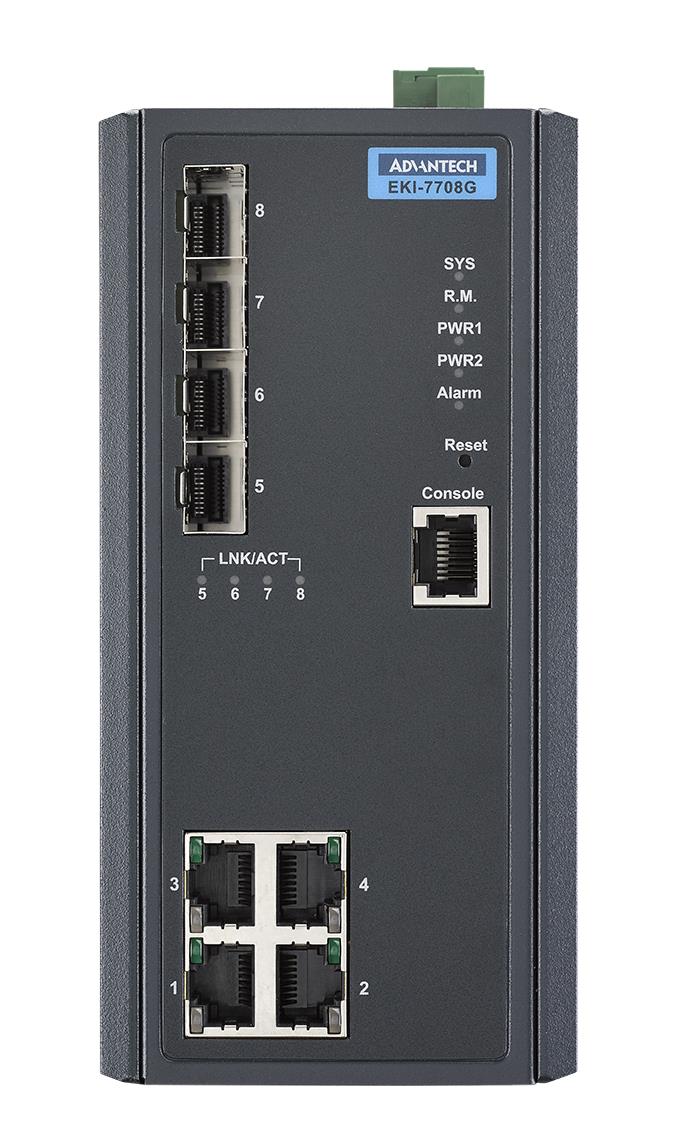

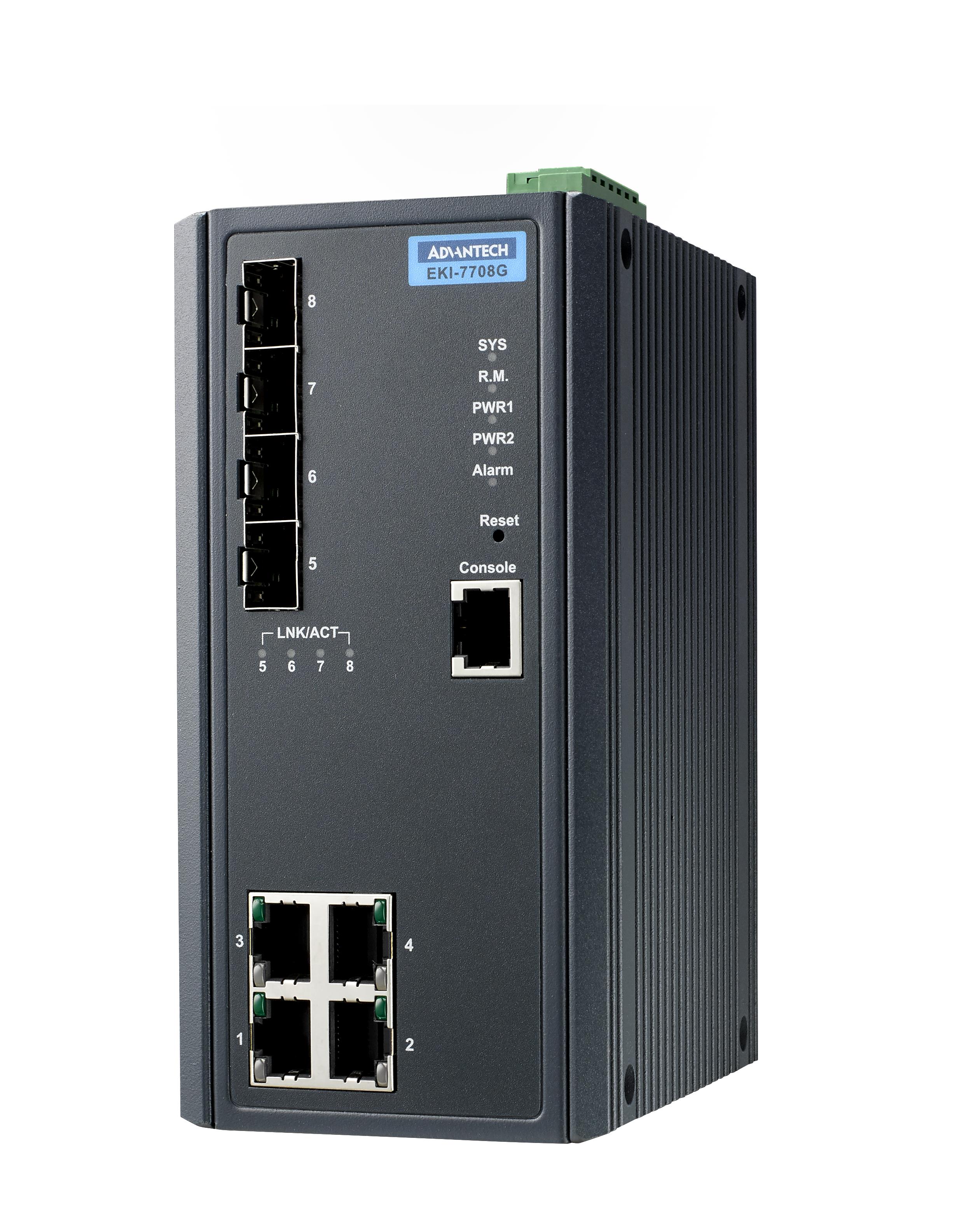

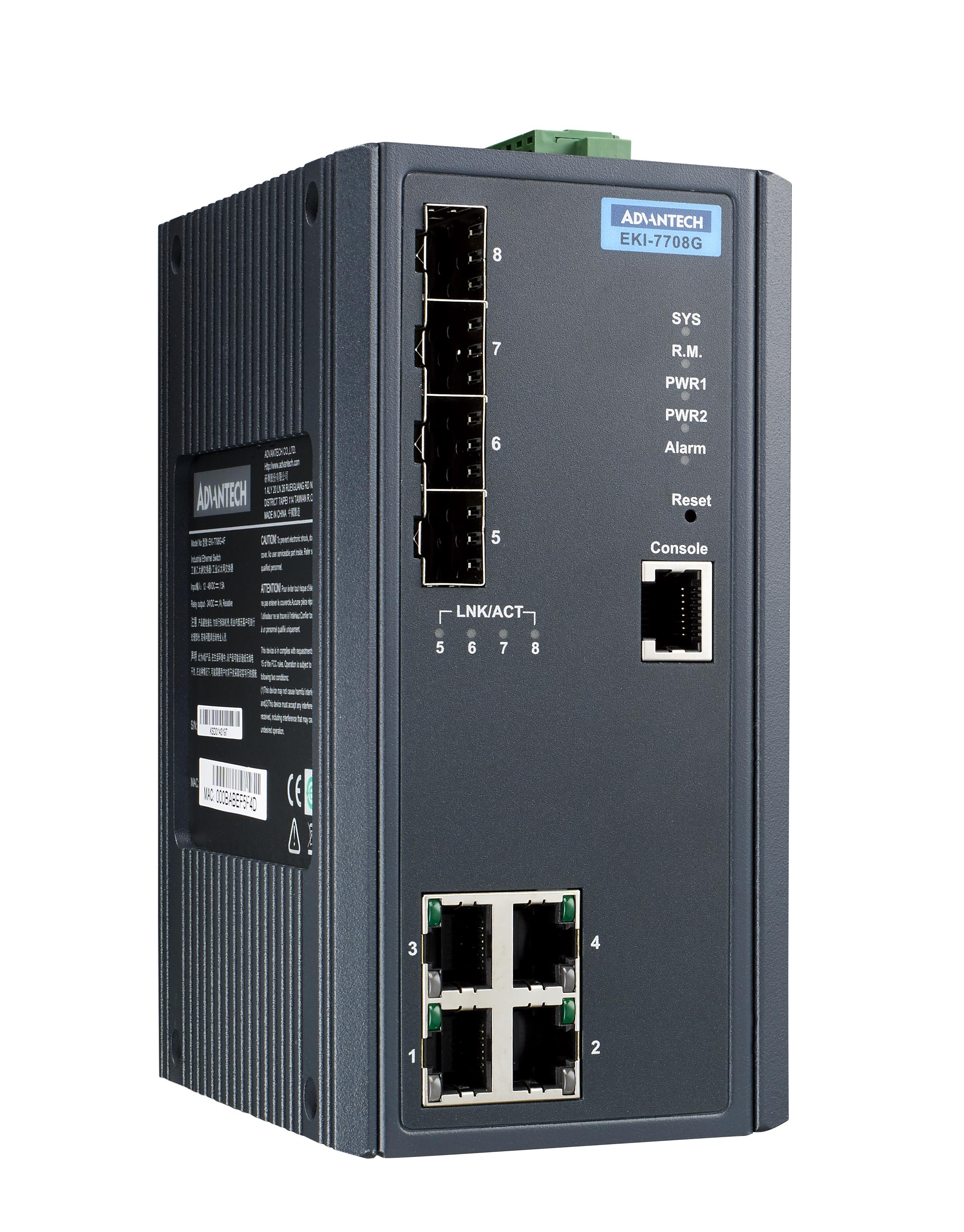

Advantech EKI-7708G-4FI-AE

Features

• Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• EMI: CE, FCC Class A
• EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
• Temperature (Max. Operating): 75°C (167°F)
• Relative Humidity: 10~95%
• Fiber Transmission Distance: Up to 110 km
• Fiber Port Connector Type: SFP cage
• Fiber Port Interface: SFP
• RJ-45 Transmission Distance: 100 m
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Mounting (Wall): Yes
• Mounting (DIN-rail): Yes
• Weight: 1.1 kg
• IP Rating: IP30
• Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
• Method: Telcordia, GB
• Power Operating Current: 0.25A @ 48VDC (system)
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Input (DC): 12 ~ 48 VDC
• Power Consumption: 12.1W (system)
• Reverse Polarity: Present
• Jumbo Frame: 9,216 bytes
• Switch Fabric Speed: 16Gbps
• Packet Buffer Size: 4.1M bit
• MAC Table Size: 8K
• Warranty Period: 5 years
• 4 Gigabit ports + 4 SFP ports
• SFP socket for Easy and Flexible Fiber Expansion
• Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
• IXM function enables fast deployment
• Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
• NEMA TS2 for Traffic Control
• EN50121-4 approval for Railway trackside deployment
• Dual 12 ~ 48 VDC power input and 1 relay output
